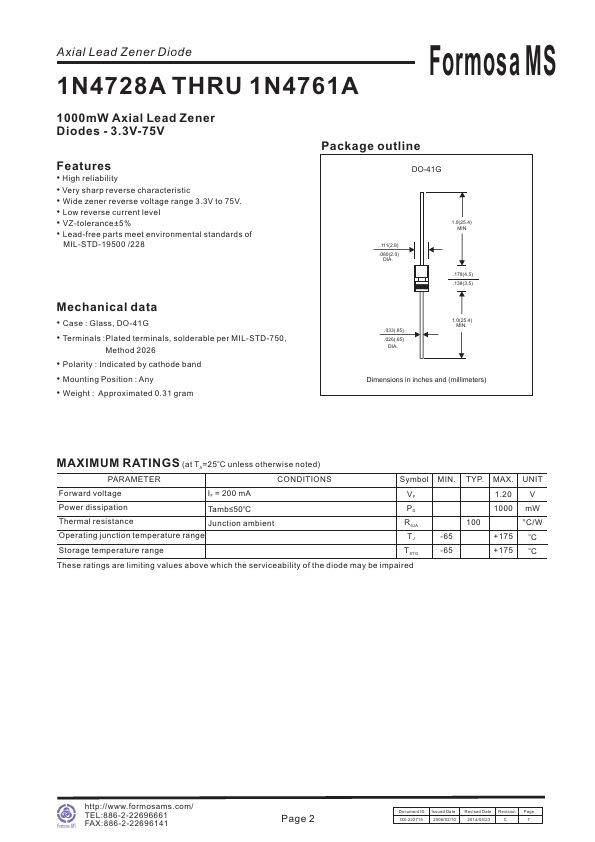

1N4745A Overview
Axial Lead Zener Diode 1N4728A THRU 1N4761A Formosa MS 1000mW Axial Lead Zener Diodes - 3.3V-75V.
1N4745A Key Features
- High reliability
- Very sharp reverse characteristic
- Wide zener reverse voltage range 3.3V to 75V
- Low reverse current level
- VZ-tolerance±5%
- Case : Glass, DO-41G
- Terminals :Plated terminals, solderable per MIL-STD-750
- Polarity : Indicated by cathode band
- Mounting Position : Any
- Weight : Approximated 0.31 gram
