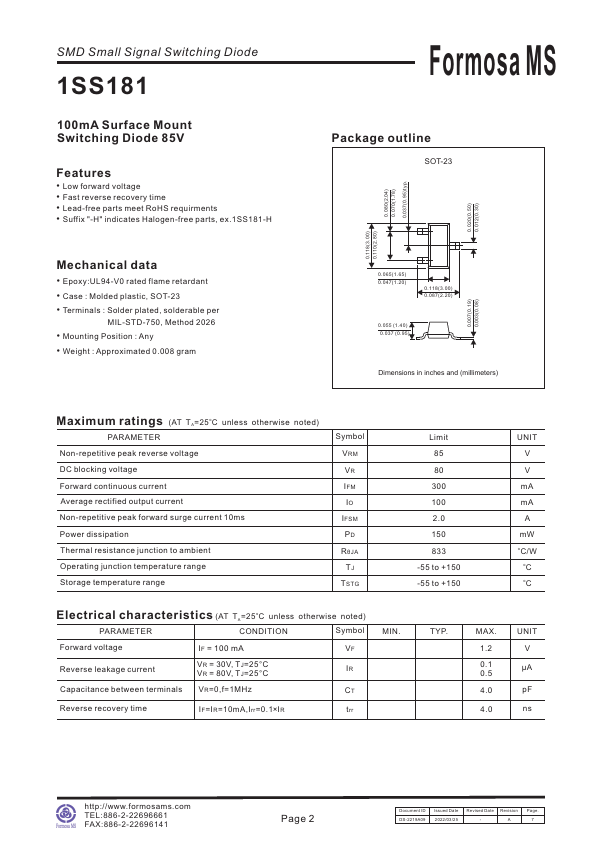

Formosa MS 1SS181
SMD Small Signal Switching Diode
| Part No. | 1SS181 |
|---|---|
| Datasheet | 1SS181 Download |
| Manufacturer |  Formosa MS |
| Description | SMD Small Signal Switching Diode |
| Buy | Stock & Price |
FEATURES
● Low forward voltage● Fast reverse recovery time
● Lead-free parts meet RoHS requirments
● Suffix "-H" indicates Halogen-free parts, ex.1SS181-H Mechanical data
● Epoxy:UL94-V0 rated flame retardant
● Case : Molded plastic, SOT-23
● Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
● Mounting Position : Any
● Weight : Approximated 0.008 gram Formosa MS Package outline SOT-23 0.080(2.04) 0.070(1.78) 0.037(0.95)typ. 0.020(0.50) 0.012(0.30) 0.118(3.00) 0.110(2.80) 0.007(0.19) 0.003(0.08) 0.065(1.65) 0.047(1.20) 0.118(3.00) 0.087(2.20) 0.055 (1.40) 0.037 (0.95) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25oC unless otherwise noted) PARAMETER Non-repetitive peak reverse voltage DC blocking voltage Forward continuous current Average rectified output current Non-repetitive peak forward surge current 10ms Power dissipation Thermal resistance junction to ambient Operating junction temperature range Storage temperature range Symbol VRM VR IFM IO IFS...
