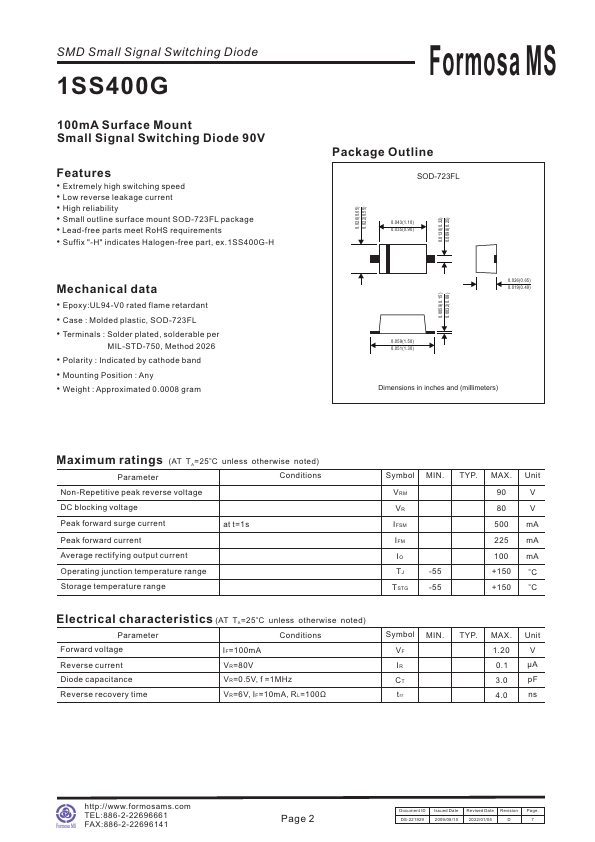

Formosa MS 1SS400G
SMD Small Signal Switching Diode
| Part No. | 1SS400G |
|---|---|
| Datasheet | 1SS400G Download |
| Manufacturer |  Formosa MS |
| Description | SMD Small Signal Switching Diode |
| Buy | Stock & Price |
FEATURES
● Extremely high switching speed● Low reverse leakage current
● High reliability
● Small outline surface mount SOD-723FL package
● Lead-free parts meet RoHS requirements
● Suffix "-H" indicates Halogen-free part, ex.1SS400G-H Mechanical data
● Epoxy:UL94-V0 rated flame retardant
● Case : Molded plastic, SOD-723FL
● Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
● Polarity : Indicated by cathode band
● Mounting Position : Any
● Weight : Approximated 0.0008 gram Formosa MS 0.026(0.65) 0.022(0.55) Package Outline SOD-723FL 0.043(1.10) 0.035(0.90) 0.0130(0.32) 0.0098(0.25) 0.026(0.65) 0.019(0.49) 0.0059(0.15) 0.0032(0.08) 0.059(1.50) 0.051(1.30) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25oC unless otherwise noted) Parameter Conditions Non-Repetitive peak reverse voltage DC blocking voltage Peak forward surge current at t=1s Peak forward current Average rectifying output current Operating junction temperature range Storage temperature range Symbol MIN.
