BAS21CW Datasheet

Manufacturer: Formosa MS

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	BAS21CW
Datasheet	BAS21CW BAS19W Datasheet (PDF)
File Size	133.96 KB
Manufacturer	Formosa MS
Description	SMD Switching Diode

BAS21CW Overview

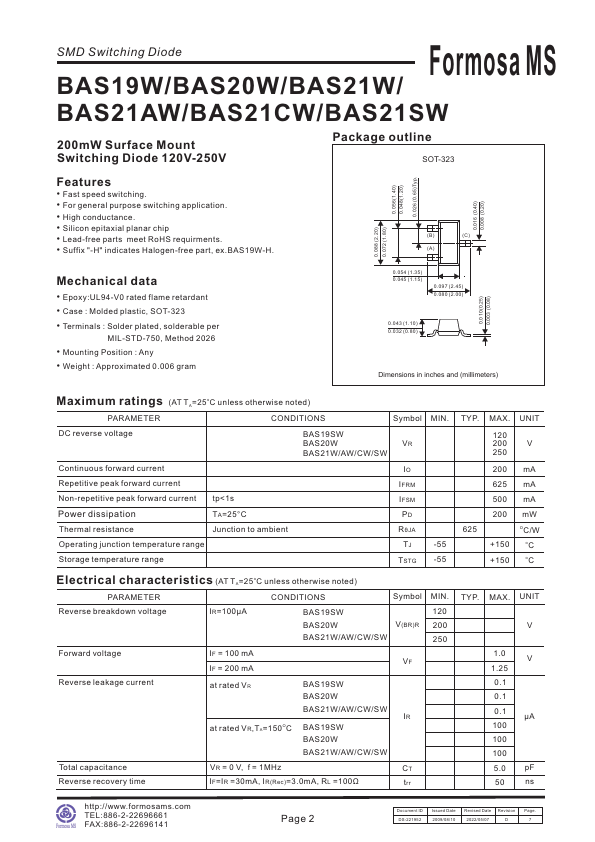

SMD Switching Diode Formosa MS BAS19W/BAS20W/BAS21W/ BAS21AW/BAS21CW/BAS21SW 200mW Surface Mount Switching Diode 120V-250V Package outline SOT-323 0.016 (0.40) 0.008.

BAS21CW Key Features

Fast speed switching
For general purpose switching application
High conductance
Silicon epitaxial planar chip
Lead-free parts meet RoHS requirments
Suffix "-H" indicates Halogen-free part, ex.BAS19W-H
Epoxy:UL94-V0 rated flame retardant
Case : Molded plastic, SOT-323
Mounting Position : Any
Weight : Approximated 0.006 gram
