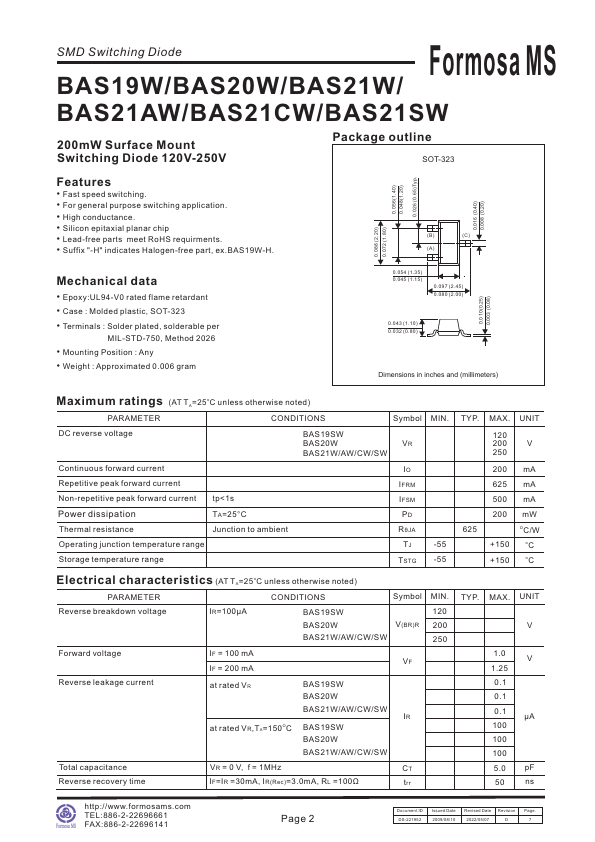

BAS21SW
BAS21SW is SMD Switching Diode manufactured by Formosa MS.
- Part of the BAS19W comparator family.
- Part of the BAS19W comparator family.
Features
- Fast speed switching.
- For general purpose switching application.
- High conductance.
- Silicon epitaxial planar chip
- Lead-free parts meet Ro HS requirments.
- Suffix "-H" indicates Halogen-free part, ex.BAS19W-H.
0.056(1.40) 0.048(1.20)
0.026 (0.65)Typ.
(B)
(C)
(A)
0.088 (2.20) 0.072 (1.80)
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-323
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Mounting Position : Any
- Weight : Approximated 0.006 gram
0.010(0.25) 0.003 (0.08)
0.054 (1.35) 0.045 (1.15)
0.097 (2.45) 0.080 (2.00)
0.043 (1.10) 0.032 (0.80)
Dimensions in inches and (millimeters)
Maximum ratings (AT TA=25o C unless otherwise noted)
PARAMETER
CONDITIONS
Symbol MIN.
DC reverse...
