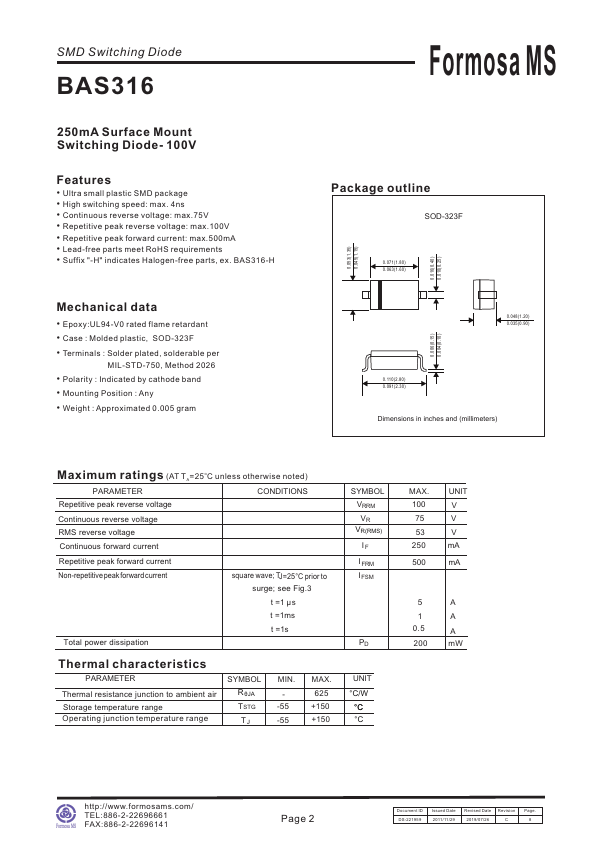

Features - Ultra small plastic SMD package - High switching speed: max. 4ns - Continuous reverse voltage: max.75V - Repetitive peak reverse voltage: max.100V - Repetitive peak forward current: max.500m A - Lead-free parts meet Ro HS requirements - Suffix "-H" indicates Halogen-free parts, ex. BAS316-H Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOD-323F - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.005 gram Formosa MS 0.053(1.35) 0.045(1.15) Package outline SOD-323F 0.071(1.80) 0.063(1.60) 0.016(0.40) 0.010(0.25) 0.048(1.20) 0.035(0.90) 0.006(0.15) 0.004(0.10) 0.110(2.80) 0.091(2.30) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) PARAMETER CONDITIONS Repetitive peak reverse voltage Continuous reverse voltage RMS reverse voltage Continuous forward current Repetitive peak forward current Non-repetitive peak forward current square wave; TJ=25°C prior to surge; see Fig.3 t =1 µs t =1ms t =1s Total power dissipation Thermal characteristics PARAMETER Thermal resistance junction to ambient air Storage temperature range Operating junction temperature range SYMBOL R θJA TSTG...
