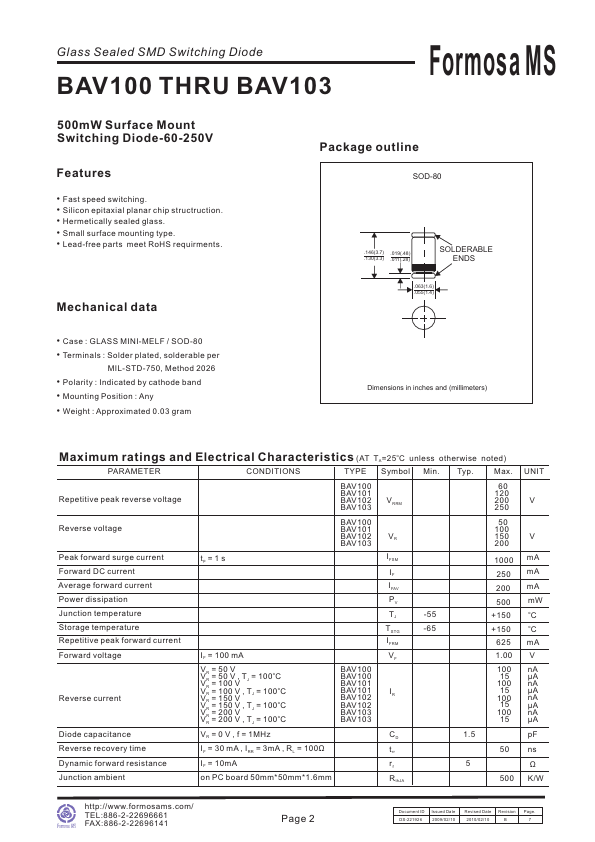

BAV100 Overview
Glass Sealed SMD Switching Diode BAV100 THRU BAV103 Formosa MS 500mW Surface Mount Switching Diode-60-250V.
BAV100 Key Features
- Fast speed switching
- Silicon epitaxial planar chip structruction
- Hermetically sealed glass
- Small surface mounting type
- Lead-free parts meet RoHS requirments
- Case : GLASS MINI-MELF / SOD-80
- Polarity : Indicated by cathode band
- Mounting Position : Any
- Weight : Approximated 0.03 gram

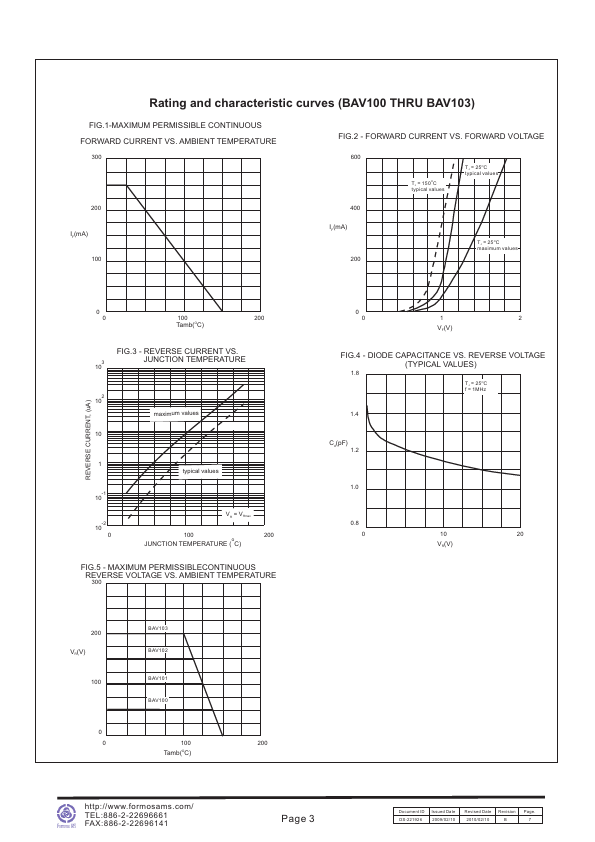

- FORWARD CURRENT VS. FORWARD VOLTAGE
