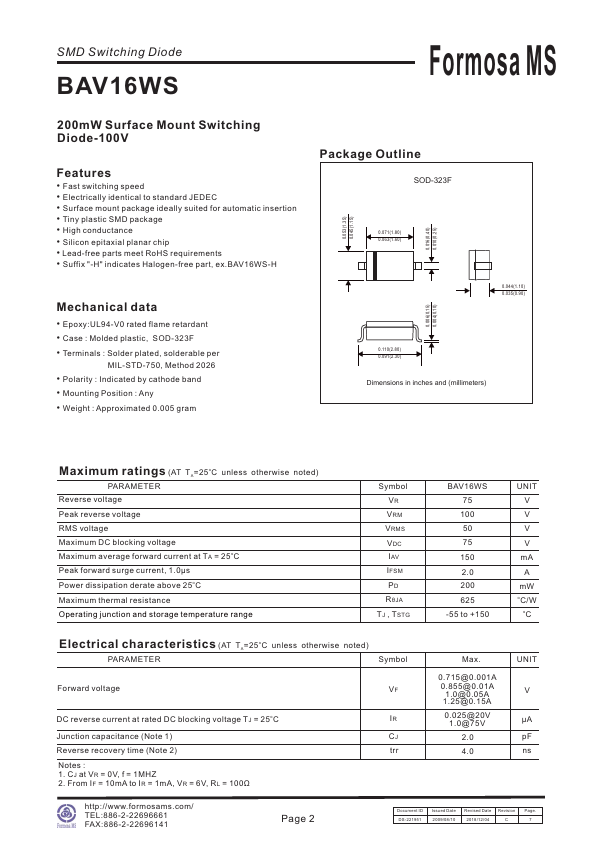

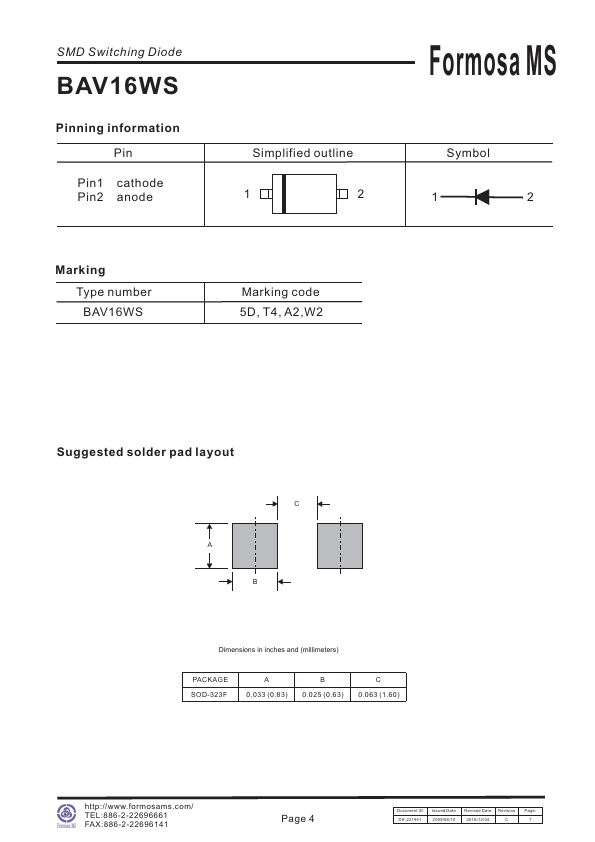

BAV16WS Datasheet | Formosa MS

Features - Fast switching speed - Electrically identical to standard JEDEC - Surface mount package ideally suited for automatic insertion - Tiny plastic SMD package - High conductance - Silicon epitaxial planar chip - Lead-free parts meet Ro HS requirements - Suffix "-H" indicates Halogen-free part, ex.BAV16WS-H Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOD-323F - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.005 gram 0.053(1.35) 0.045(1.15) Package Outline SOD-323F 0.071(1.80) 0.063(1.60) 0.016(0.40) 0.010(0.25) 0.044(1.10) 0.035(0.90) 0.006(0.15) 0.004(0.10) 0.110(2.80) 0.091(2.30) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) PARAMETER Reverse voltage Peak reverse voltage RMS voltage Maximum DC blocking voltage Maximum average forward current at TA = 25o C Peak forward surge current, 1.0μs Power dissipation derate above 25o C Maximum thermal resistance Operating junction and storage temperature range Symbol VR VRM VRMS VDC IAV IFSM PD RθJA TJ , TSTG BAV16WS 75 100 50 75 150 2.0 200 625 -55 to +150 UNIT V V V V m A A m W o C/W o C Electrical characteristics (AT TA=25o C unless otherwise noted) PARAMETER Symbol Forward voltage DC reverse current at rated DC blocking voltage TJ = 25o...
