BAV23C datasheet by Formosa MS.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BAV23C |
|---|---|
| Datasheet | BAV23C BAV23 Datasheet (PDF) |
| File Size | 139.53 KB |
| Manufacturer | Formosa MS |
| Description | SMD Switching Diode |
|
|

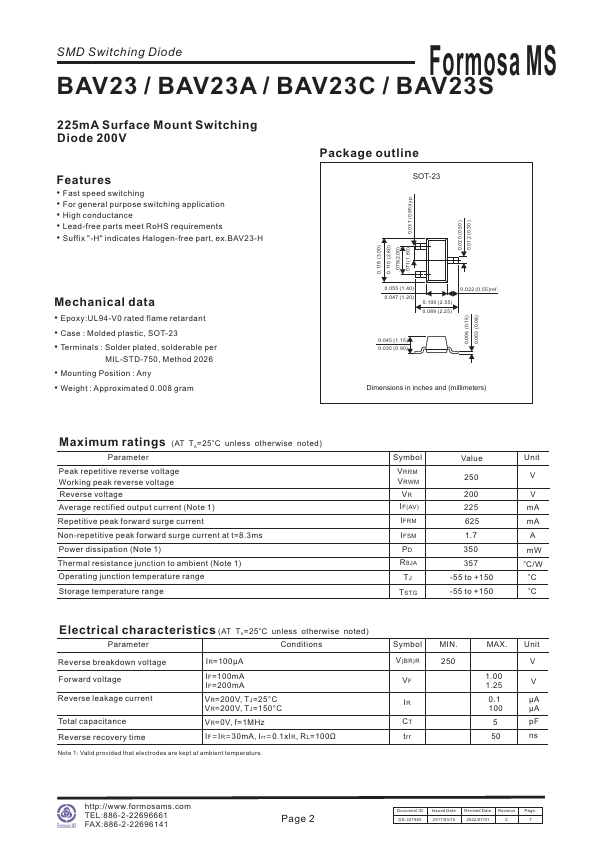

SMD Switching Diode Formosa MS BAV23 / BAV23A / BAV23C / BAV23S 225mA Surface Mount Switching Diode 200V.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BAV23C | HIGH CONDUCTANCE ULTRA FAST DIODE | UTC |
 |
BAV23C | Dual Switching Diode | Yangzhou Yangjie |
 |
BAV23C | Dual high-voltage switching diodes | nexperia |
 |
BAV23C | Switching Diodes | Kexin |
 |
BAV23C | 350mW Small Signal Diode | MCC |
