BR5010 is Bridge Rectifier manufactured by Formosa MS.
- Part of the BR5000 comparator family.
- Part of the BR5000 comparator family.
Bridge Rectifier
BR1000 THRU BR5010
Formosa MS

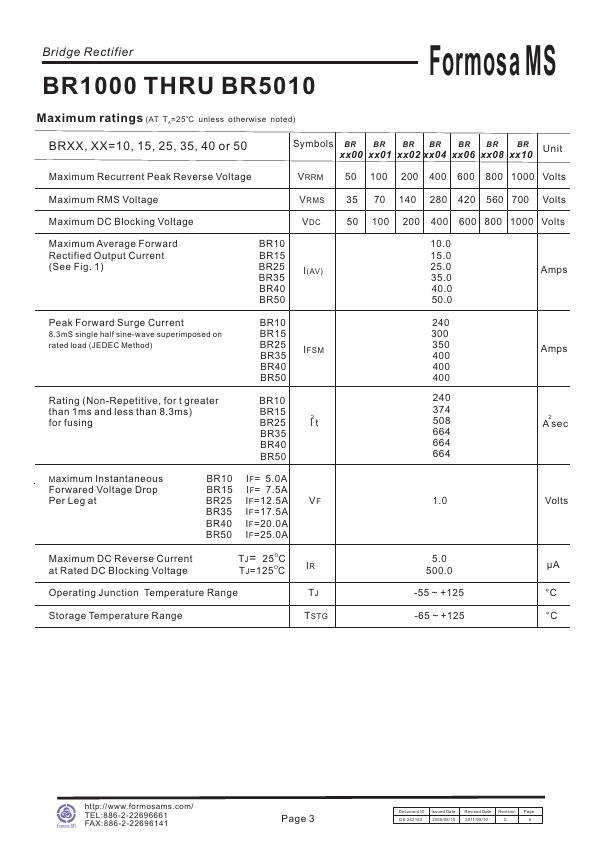

10.0A ~ 50.0A Single-Phase Bridge Rectifiers
- 50V-1000V
Package outline
.661(16.8) .648(16.4)
.720(18.3) .705(17.9)
KBPC-PT hole for #8 screw .193(4.9) Diam.
.661(16.8) .648(16.4)
1.130328.80) 1.114(28.30)
.254(6.45) .242(6.15)
.035(0.9) .028(0.7)
.442(11.23) .424(10.77)
Metal Heat Sink
0.925(23.50) 0.886(22.50)
Dimensions in inches and (millimeters)
KBPC-PS
.140(3.60) .120(3.05)
Metal Heat Sink
.442(11.23) .424(10.77)
.052(1.30) .048(1.20)
.550(13.9) Min.
1.133(28.80) 1.114(28.30)
0.750(19.0) Min.
.220(5.60) .180(4.60) hole for #8 screw .193(4.9) Diam.
Dimensions in inches and (millimeters)
KBPC-PW
.732(18.6)...
