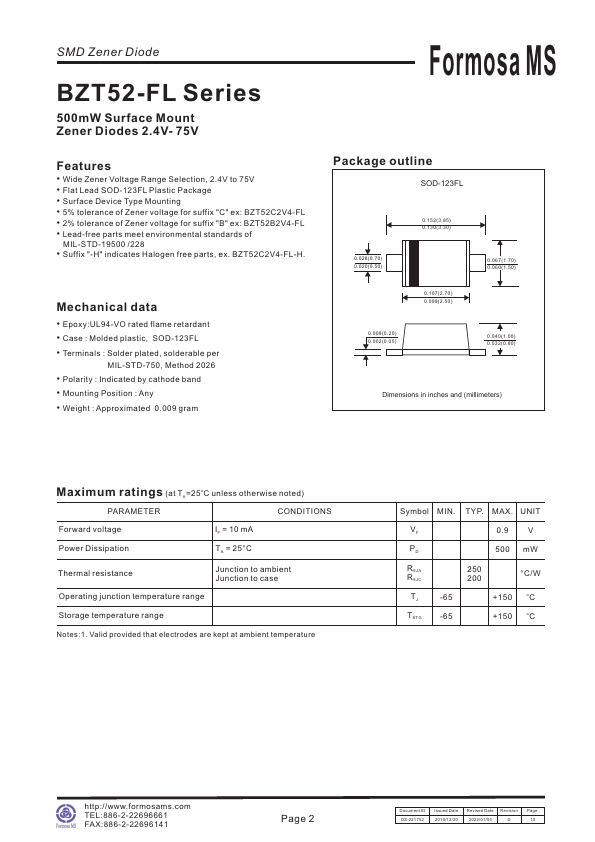

SMD Zener Diode BZT52-FL Series 500m W Surface Mount Zener Diodes 2.4V- 75V Features - Wide Zener Voltage Range Selection, 2.4V to 75V - Flat Lead SOD-123FL Plastic Package - Surface Device Type Mounting - 5% tolerance of Zener voltage for suffix "C" ex: BZT52C2V4-FL - 2% tolerance of Zener voltage for suffix "B" ex: BZT52Β2V4-FL - Lead-free parts meet environmental standards of MIL-STD-19500 /228 - Suffix "-H" indicates Halogen free parts, ex. ΒΖΤ52C2V4-FL-H. Mechanical data - Epoxy:UL94-VO rated flame retardant - Case : Molded plastic, SOD-123FL - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.009 gram Formosa MS Package outline SOD-123FL 0.028(0.70) 0.020(0.50) 0.152(3.85) 0.130(3.30) 0.107(2.70) 0.099(2.50) 0.008(0.20) 0.002(0.05) 0.067(1.70) 0.060(1.50) 0.040(1.00) 0.032(0.80) Dimensions in inches and...
