DTA114YE
DTA114YE is Digital PNP Transistor manufactured by Formosa MS.
Features

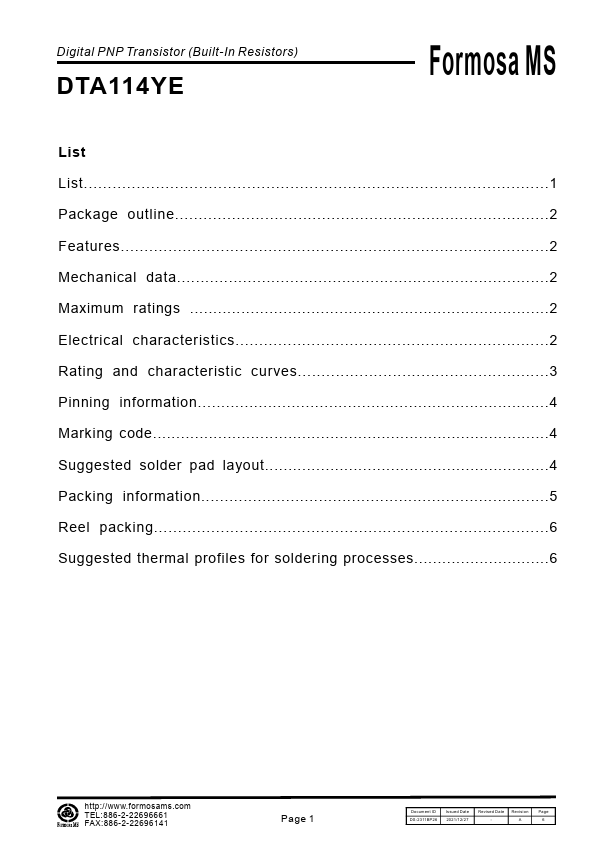

2 Mechanical data 2 Maximum ratings 2 Electrical characteristics 2 Rating and characteristic curves 3 Pinning information 4 Marking code 4 Suggested solder pad layout 4 Packing information 5 Reel packing 6 Suggested thermal profiles for soldering processes 6 h t t p : / / ww w. f or mo s a m s . c om TEL:886-2-22696661 FAX:886-2-22696141
Page 1
Document ID D S
- 2 3 11 B P 2 6
Issued Date 2021/12/27
Revised Date
- Revision A
Page 6
Digital PNP Transistor (Built-In Resistors)
Formosa MS
PNP Silicon Epitaxial Planar Digital Transistor
Features
- Built-in bias resistors that implies easy ON/OFF applications.
- The bias resistors consist of thin-film resistors with plete isolation to allow positive biasing of the input.
- Only the on/off conditions need to be set for operation, making device design easy.
- We declare that the material of product pliance with
Ro HS requirements.
- Suffix "-H" indicates Halogen free parts, ex. DΤΑ114ΥΕ-H.

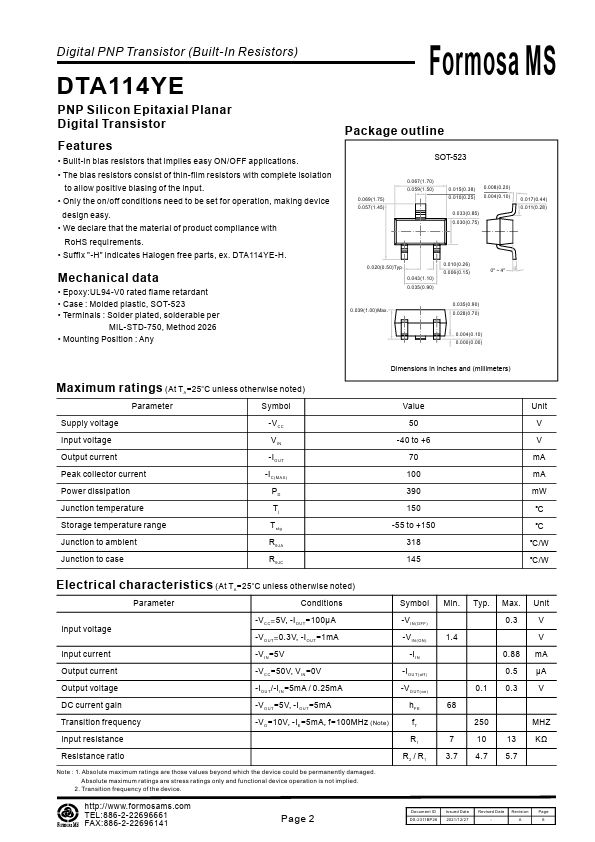

Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-523
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Mounting Position : Any
Package outline
0.069(1.75) 0.057(1.45)
SOT-523
0.067(1.70)...
