DTA143ZE
DTA143ZE is Digital PNP Transistor manufactured by Formosa MS.
Features

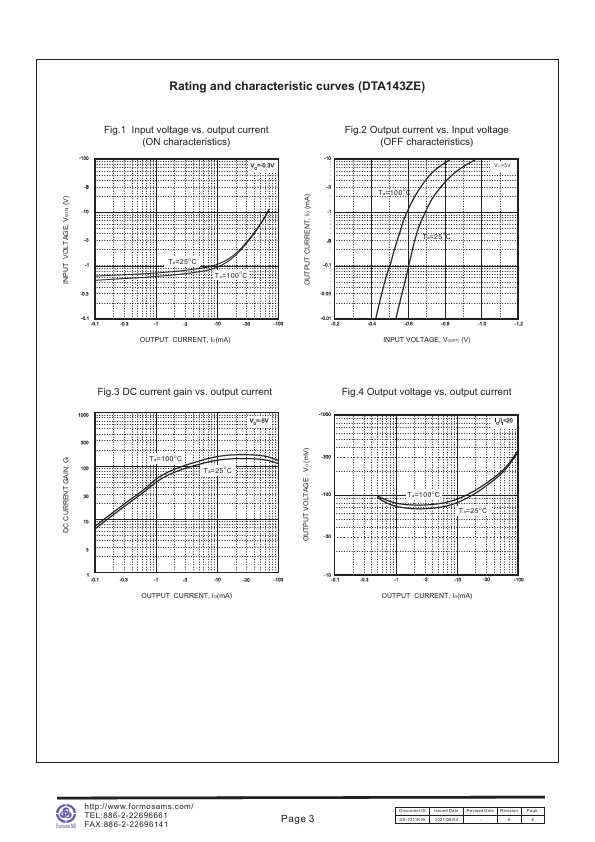

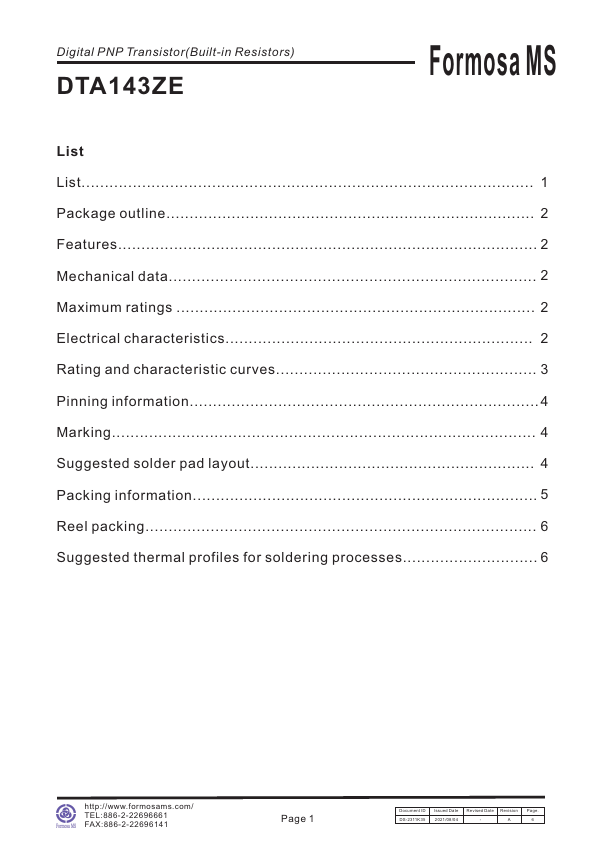

2 Mechanical data 2 Maximum ratings 2 Electrical characteristics 2 Rating and characteristic curves 3 Pinning information 4 Marking 4 Suggested solder pad layout 4 Packing information 5 Reel packing 6 Suggested thermal profiles for soldering processes 6 http://.formosams./ TEL:886-2-22696661 FAX:886-2-22696141
Page 1
Document ID DS-2311K35
Issued Date 2021/08/04
Revised Date Revision
- A
Page. 6

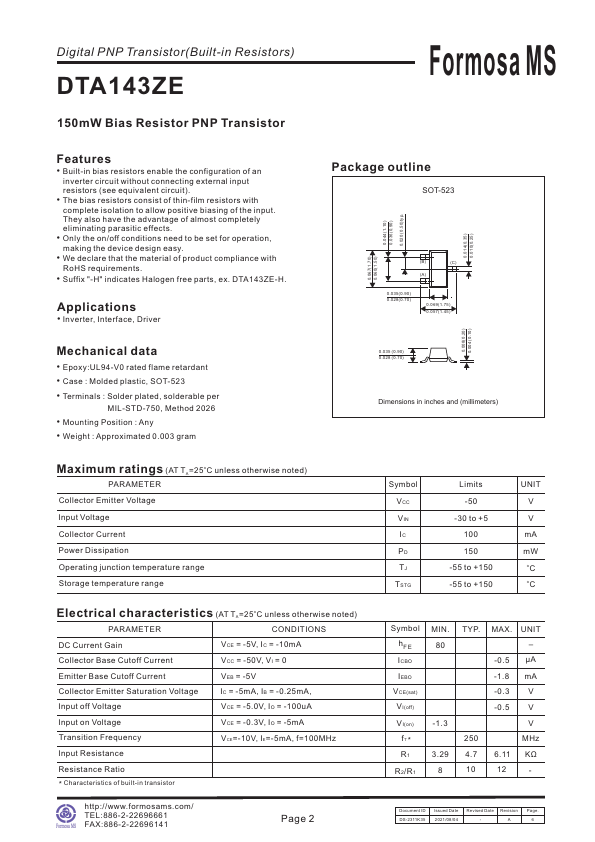

Digital PNP Transistor(Built-in Resistors)
Formosa MS
150m W Bias Resistor PNP Transistor
Features
- Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
- The bias resistors consist of thin-film resistors with plete isolation to allow positive biasing of the input. They also have the advantage of almost pletely eliminating parasitic effects.
- Only the on/off conditions need to be set for operation, making the device design easy.
- We declare that the material of product pliance with
Ro HS requirements.
- Suffix "-H" indicates Halogen free parts, ex. DTA143ZE-H.
Applications
- Inverter, Interface, Driver
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-523
-...
