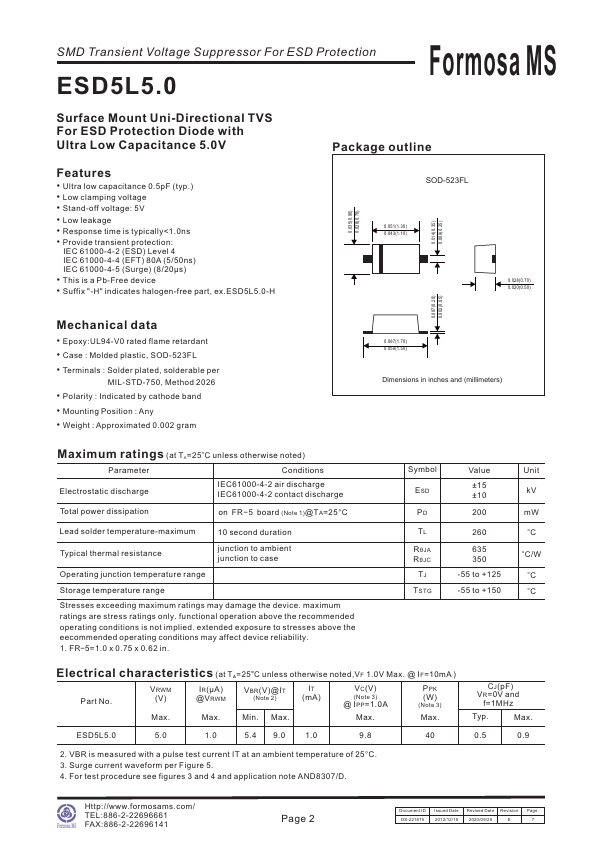

ESD5L5.0 Overview
SMD Transient Voltage Suppressor For ESD Protection ESD5L5.0 Formosa MS Surface Mount Uni-Directional TVS For ESD Protection Diode with Ultra Low Capacitance 5.0V.
ESD5L5.0 Key Features
- Ultra low capacitance 0.5pF (typ.)
- Low clamping voltage
- Stand-off voltage: 5V
- Low leakage
- Response time is typically<1.0ns
- Provide transient protection
- This is a Pb-Free device
- Suffix "-H" indicates halogen-free part, ex.ESD5L5.0-H
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-523FL
