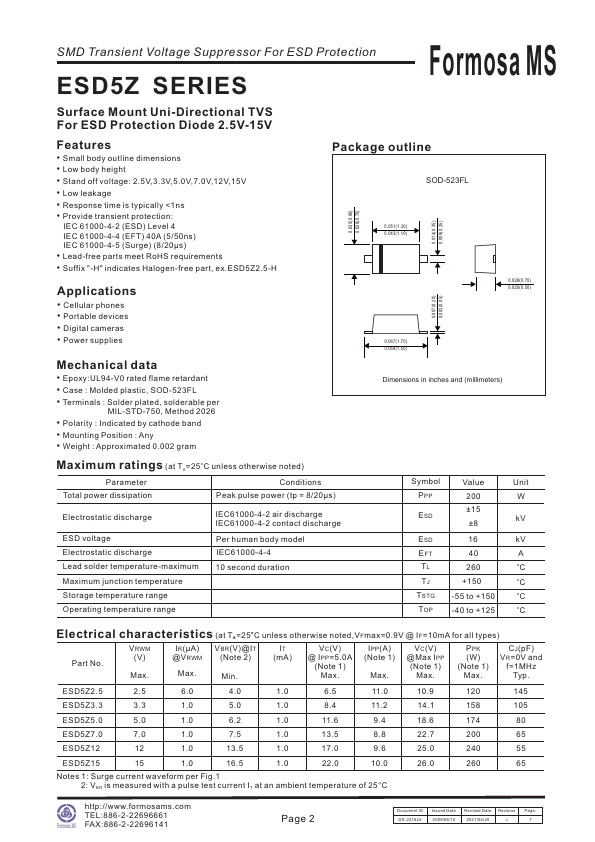

ESD5Z2.5
Features
- Small body outline dimensions
- Low body height
- Stand off voltage: 2.5V,3.3V,5.0V,7.0V,12V,15V
- Low leakage
- Response time is typically <1ns
- Provide transient protection:
IEC 61000-4-2 (ESD) Level 4 IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Surge) (8/20µs)
- Lead-free parts meet Ro HS requirements
- Suffix "-H" indicates Halogen-free part, ex.ESD5Z2.5-H
Applications
- Cellular phones
- Portable devices
- Digital cameras
- Power supplies
0.035(0.90) 0.028(0.70)
Package outline
SOD-523FL
0.051(1.30) 0.043(1.10)
0.028(0.70) 0.020(0.50)
0.067(1.70) 0.059(1.50)
0.007(0.20) 0.002(0.05)
0.014(0.35) 0.009(0.25)
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-523FL
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Polarity : Indicated by cathode band
- Mounting Position : Any
- Weight : Approximated 0.002 gram
Dimensions in inches and (millimeters)
Maximum ratings (at TA=25o C unless otherwise noted)
Parameter...
