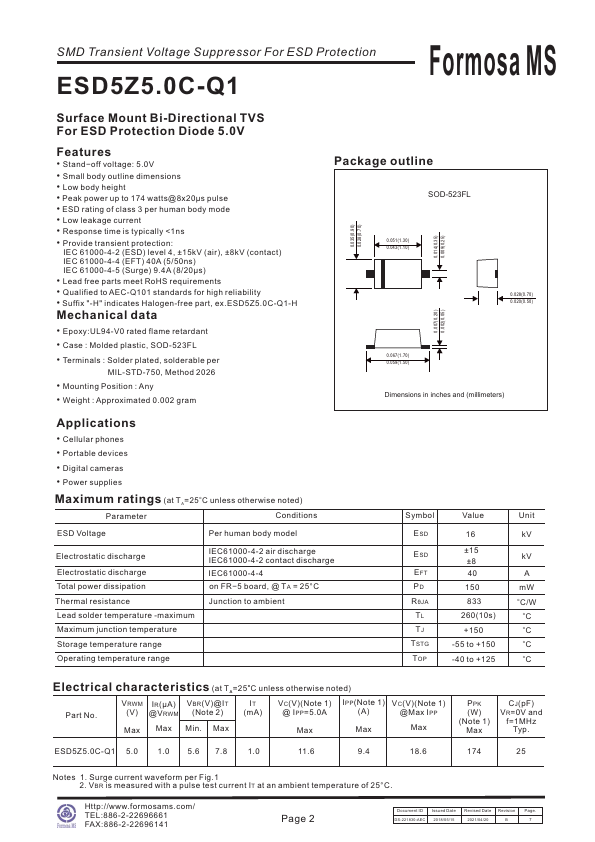

ESD5Z5.0C-Q1
Features
- Stand- off voltage: 5.0V
- Small body outline dimensions
- Low body height
- Peak power up to 174 watts@8x20μs pulse
- ESD rating of class 3 per human body mode
- Low leakage current
- Response time is typically <1ns
- Provide transient protection:
IEC 61000-4-2 (ESD) level 4, ±15k V (air), ±8k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Surge) 9.4A (8/20μs)
- Lead free parts meet Ro HS requirements
- Qualified to AEC-Q101 standards for high reliability
- Suffix "-H" indicates Halogen-free part, ex.ESD5Z5.0C-Q1-H
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-523FL
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Mounting Position : Any
- Weight : Approximated 0.002 gram
0.035(0.90) 0.028(0.70)
Package outline
SOD-523FL
0.051(1.30) 0.043(1.10)
0.028(0.70) 0.020(0.50)
0.067(1.70) 0.059(1.50)
Dimensions in inches and (millimeters)
0.007(0.20) 0.002(0.05)
0.014(0.35) 0.009(0.25)

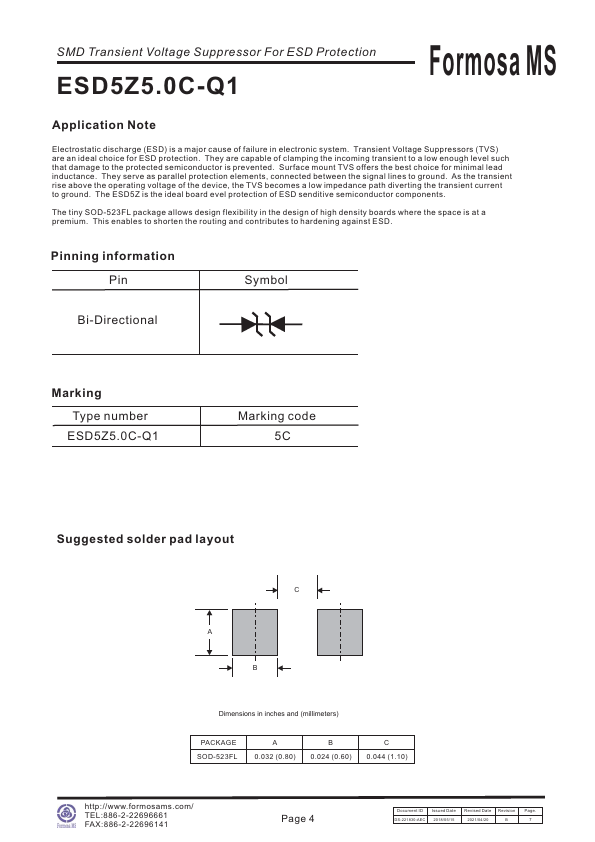

Applications
- Cellular...
