FM1100-M-Q1
FM1100-M-Q1 is Chip Schottky Barrier Rectifier manufactured by Formosa MS.
- Part of the FM140-MQ1 comparator family.
- Part of the FM140-MQ1 comparator family.
Chip Schottky Barrier Rectifier
Formosa MS

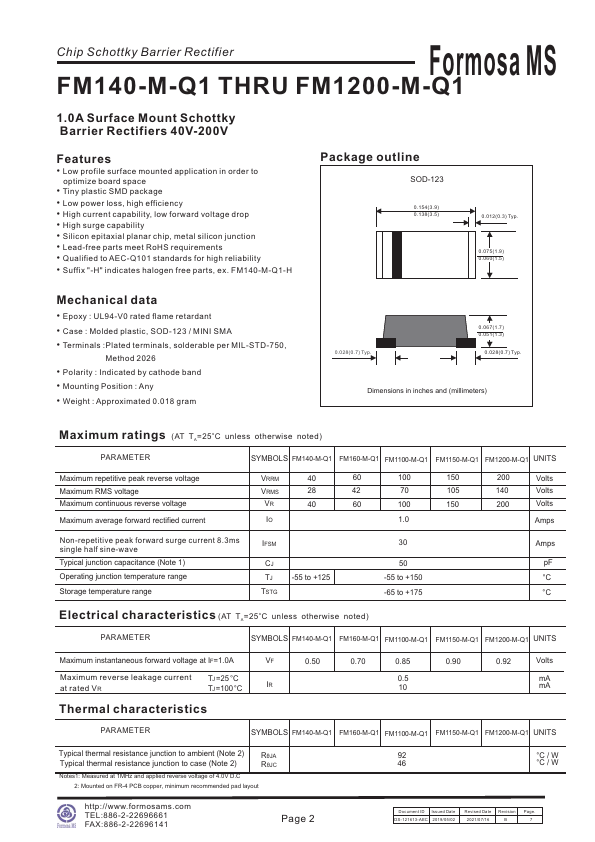

FM140-M-Q1 THRU FM1200-M-Q1
1.0A Surface Mount Schottky Barrier Rectifiers 40V-200V
Features
- Low profile surface mounted application in order to optimize board space
- Tiny plastic SMD package
- Low power loss, high efficiency
- High current capability, low forward voltage drop
- High surge capability
- Silicon epitaxial planar chip, metal silicon junction
- Lead-free parts meet RoHS requirements
- Qualified to AEC-Q101 standards for high reliability
- Suffix "-H" indicates halogen free parts, ex. FM140-M-Q1-H
Package outline
SOD-123
0.154(3.9) 0.138(3.5)
0.012(0.3) Typ.
0.075(1.9) 0.060(1.5)
Mechanical data
- Epoxy : UL94-V0 rated flame...
