FM140-M-Q1 Datasheet | Formosa MS

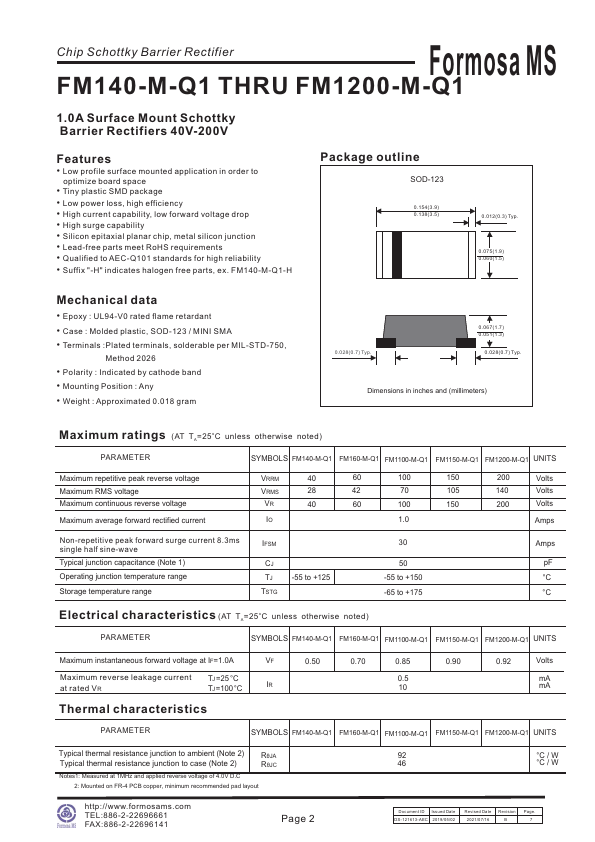

Features - Low profile surface mounted application in order to optimize board space - Tiny plastic SMD package - Low power loss, high efficiency - High current capability, low forward voltage drop - High surge capability - Silicon epitaxial planar chip, metal silicon junction - Lead-free parts meet Ro HS requirements - Qualified to AEC-Q101 standards for high reliability - Suffix "-H" indicates halogen free parts, ex. FM140-M-Q1-H Package outline SOD-123 0.154(3.9) 0.138(3.5) 0.012(0.3) Typ. 0.075(1.9) 0.060(1.5) Mechanical data - Epoxy : UL94-V0 rated flame retardant - Case : Molded plastic, SOD-123 / MINI SMA - Terminals :Plated terminals, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.018 gram 0.028(0.7) Typ. 0.067(1.7) 0.051(1.3) 0.028(0.7) Typ. Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) PARAMETER SYMBOLS FM140-M-Q1 FM160-M-Q1 FM1100-M-Q1 FM1150-M-Q1 FM1200-M-Q1 UNITS Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum continuous reverse voltage Maximum average forward rectified current VRRM Volts VRMS...
