MM5Z11V-Q1

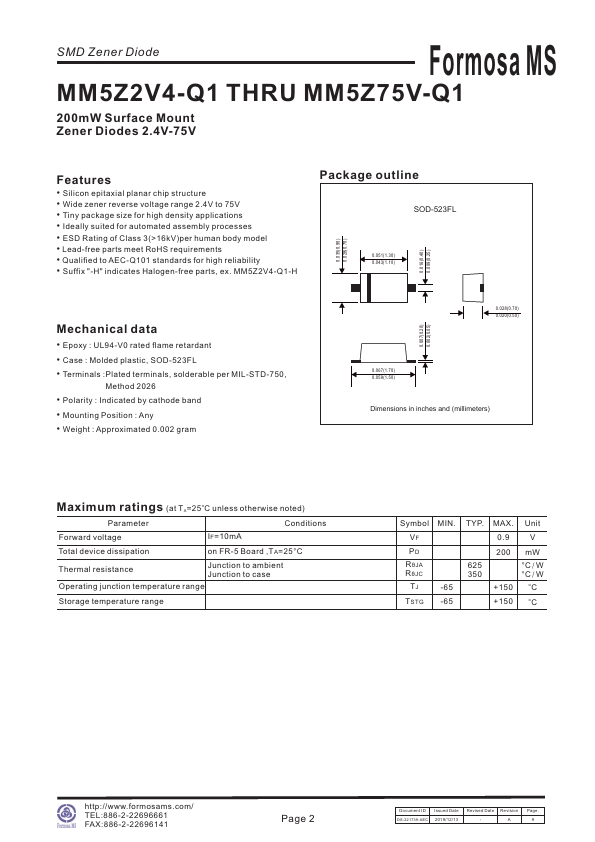

Overview
- Silicon epitaxial planar chip structure
- Wide zener reverse voltage range 2.4V to 75V
- Tiny package size for high density applications
- Ideally suited for automated assembly processes
- ESD Rating of Class 3(>16kV)per human body model
- Lead-free parts meet RoHS requirements
- Qualified to AEC-Q101 standards for high reliability
- Suffix "-H" indicates Halogen-free parts, ex. ΜΜ5Ζ2V4-Q1-H
- 035(0.90) 0.028(0.70) Package outline
