MM5Z18V-Q1 Datasheet | Formosa MS

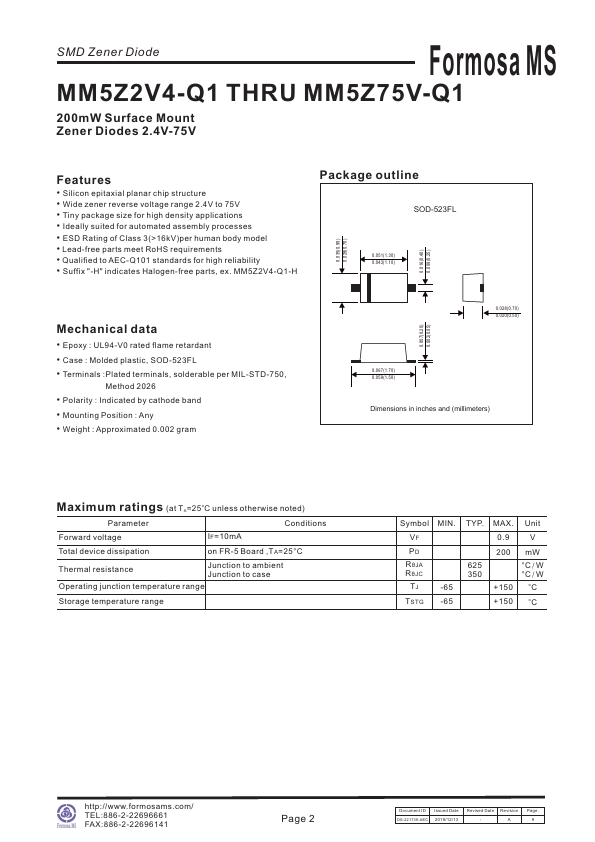

SMD Zener Diode Formosa MS MM5Z2V4-Q1 THRU MM5Z75V-Q1 200m W Surface Mount Zener Diodes 2.4V-75V Features - Silicon epitaxial planar chip structure - Wide zener reverse voltage range 2.4V to 75V - Tiny package size for high density applications - Ideally suited for automated assembly processes - ESD Rating of Class 3(>16k V)per human body model - Lead-free parts meet Ro HS requirements - Qualified to AEC-Q101 standards for high reliability - Suffix "-H" indicates Halogen-free parts, ex. ΜΜ5Ζ2V4-Q1-H 0.035(0.90) 0.028(0.70) Package outline SOD-523FL 0.051(1.30) 0.043(1.10) 0.016(0.40) 0.009(0.25) Mechanical data - Epoxy : UL94-V0 rated flame retardant - Case : Molded plastic, SOD-523FL - Terminals :Plated terminals, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.002 gram 0.007(0.20) 0.002(0.05) 0.028(0.70) 0.020(0.50) 0.067(1.70) 0.059(1.50) Dimensions in inches and...
