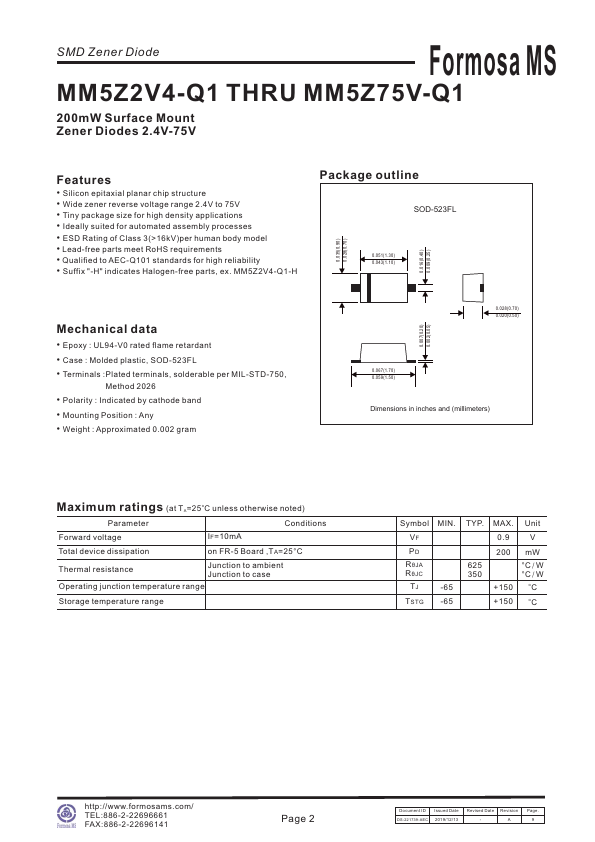

MM5Z47V-Q1 Overview
Key Features
- Silicon epitaxial planar chip structure
- Wide zener reverse voltage range 2.4V to 75V
- Tiny package size for high density applications
- Ideally suited for automated assembly processes
- ESD Rating of Class 3(>16kV)per human body model
- Lead-free parts meet RoHS requirements
- Qualified to AEC-Q101 standards for high reliability
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-523FL
- Terminals :Plated terminals, solderable per MIL-STD-750, Method 2026
