Formosa MS MMBD4148A
SMD Switching Diode
| Part No. | MMBD4148A |
|---|---|
| Datasheet | MMBD4148A Download |
| Manufacturer |  Formosa MS |
| Description | SMD Switching Diode |
| Buy | Stock & Price |

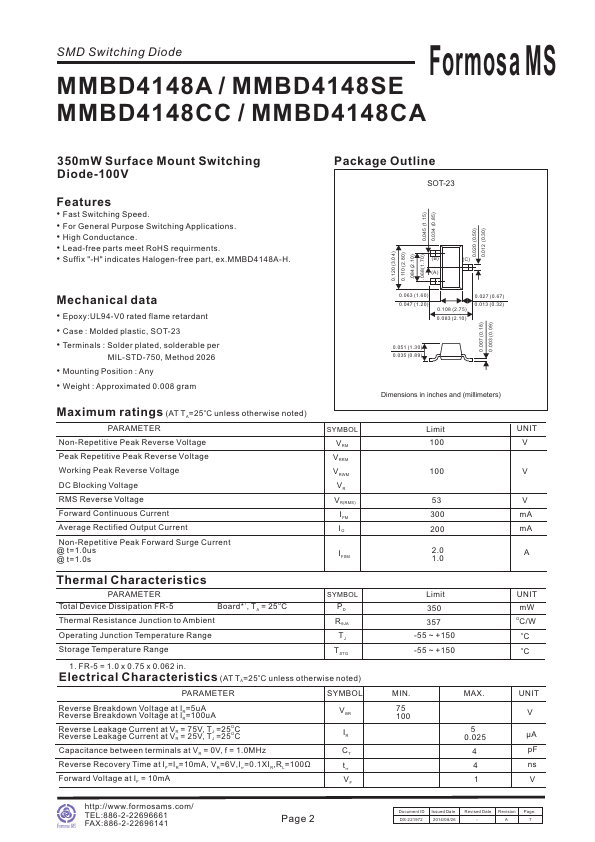

FEATURES
● Fast Switching Speed.● For General Purpose Switching
APPLICATIONS
.● High Conductance.
● Lead-free parts meet RoHS requirments.

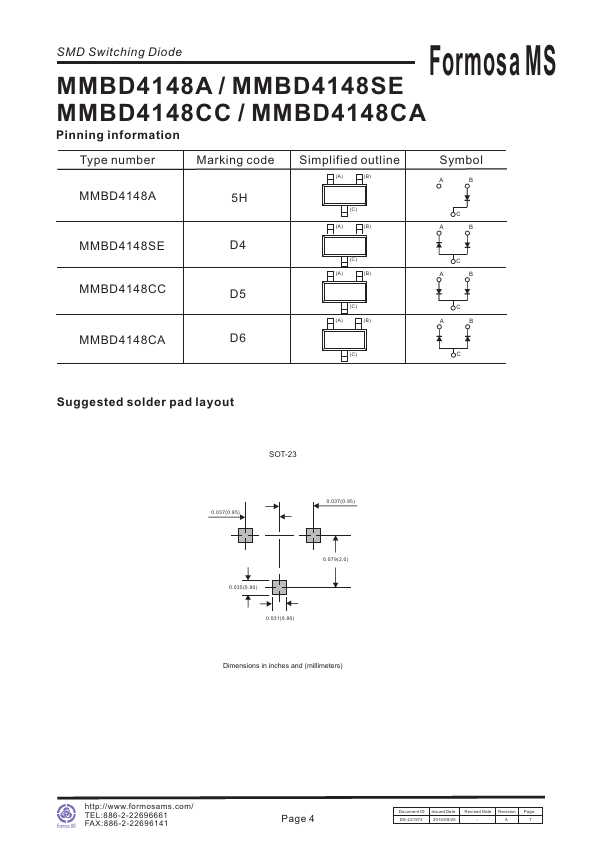

● Suffix "-H" indicates Halogen-free part, ex.MMBD4148A-H. Package Outline SOT-23 0.045 (1.15) 0.034 (0.85) (B) (C) (A) 0.020 (0.50) 0.012 (0.30) 0.120 (3.04) 0.110 (2.80) .084(2.10) .068(1.70) Mechanical data
● Epoxy:UL94-V0 rated flame retardant
● Case : Molded plastic, SOT-23
● Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
● Mounting Position : Any
● Weight : Approximated 0.008 gram Maximum ratings (AT TA=25oC unless otherwise noted) PARAMETER Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @ t=1.0us @ t=1.0s SYMBOL VRM VRRM VRWM VR VR(RMS) IFM IO IFSM Thermal Characteristics PARAMETER Total Device Dissipation FR-5 Board*1, TA = 25OC Thermal Resistance Junction to Ambient Operating Junction Temperature Range Storage Temperature Range SYMBOL PD RθJA TJ TSTG 1.
