Formosa MS RLZ10
GLASS MINI-MELF Zener Diode
| Part No. | RLZ10 |
|---|---|
| Datasheet | RLZ10 Download |
| Manufacturer |  Formosa MS |
| Description | GLASS MINI-MELF Zener Diode |
| Buy | Stock & Price |
FEATURES
● For use as low voltage stabilizer or voltage reference● Silicon epitaxial planar chip struction
● High reliability
● Glass sealed envelope
● Small surface mounting type
● Lead-free parts for green partner meet RoHS

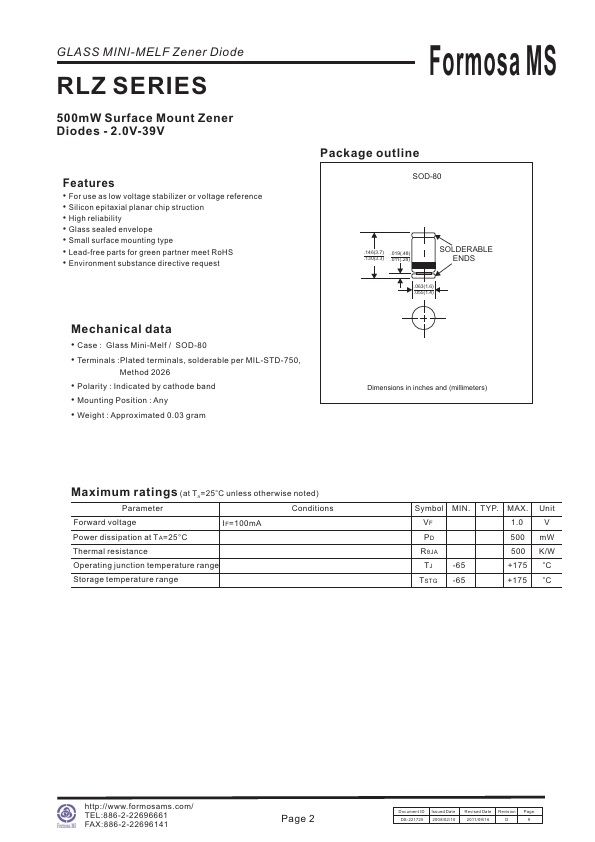

● Environment substance directive request Formosa MS Package outline SOD-80 .146(3.7) .019(.48) .130(3.3) .011(.28) SOLDERABLE ENDS .063(1.6) .055(1.4) Mechanical data
● Case : Glass Mini-Melf / SOD-80
● Terminals :Plated terminals, solderable per MIL-STD-750, Method 2026
● Polarity : Indicated by cathode band
● Mounting Position : Any

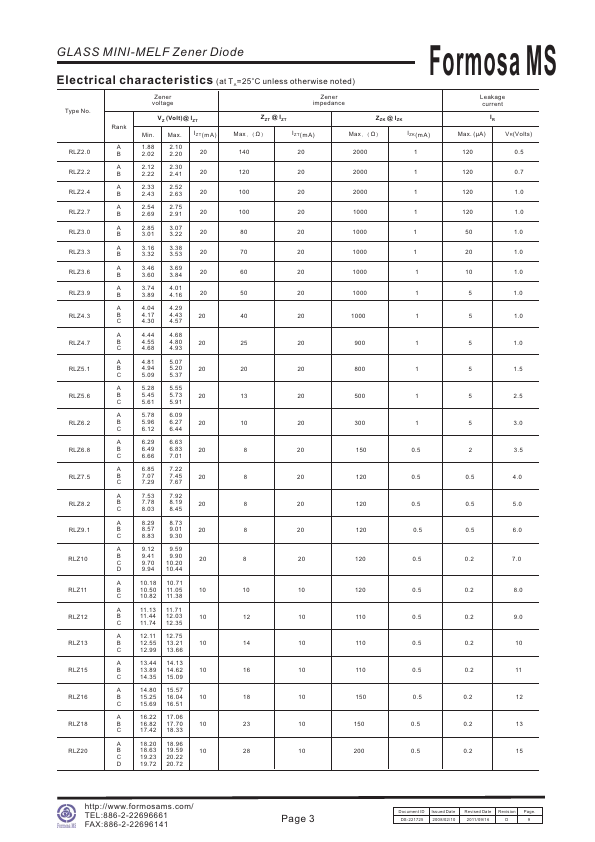

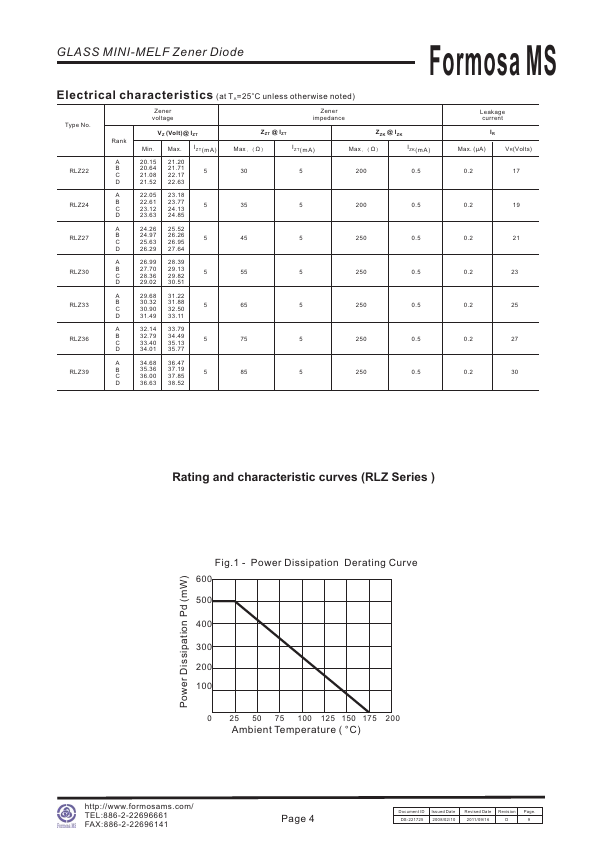

● Weight : Approximated 0.03 gram Dimensions in inches and (millimeters) Maximum ratings (at TA=25oC unless otherwise noted) Parameter Conditions Forward voltage IF=100mA Power dissipation at TA=25°C Thermal resistance Operating junction temperature range Storage temperature range Symbol MIN. VF PD RθJA TJ -65 TSTG -65 TYP. MAX. 1.0 500 500 +175 +175 Unit V mW K/W oC oC TEL:886-2-22696661 FAX:886-2-22696141 Page 2 Document ID Issued Date DS-221725 2008/02/10 Revised Date Revision 2011/09/16 D Page.
