RLZ15 Datasheet | Formosa MS

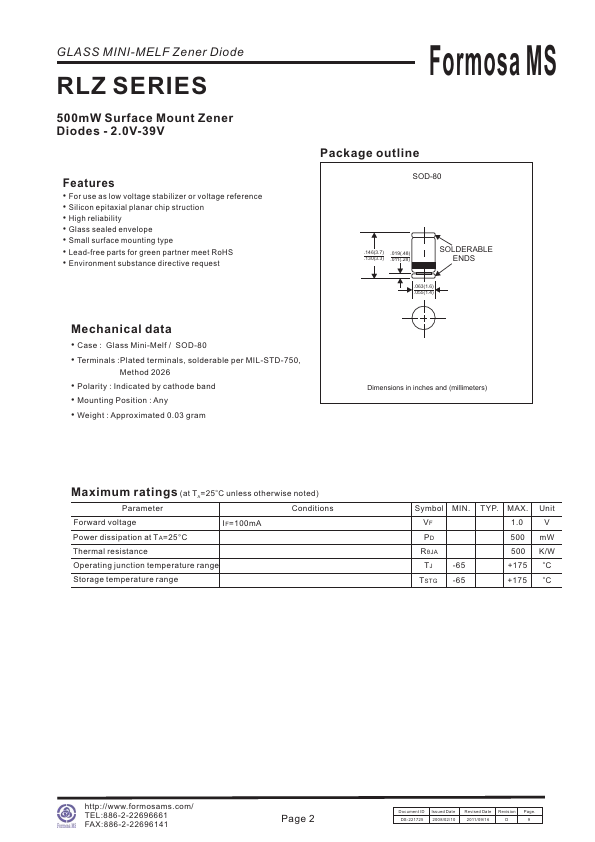

GLASS MINI-MELF Zener Diode RLZ SERIES 500mW Surface Mount Zener Diodes - 2.0V-39V Features - For use as low voltage stabilizer or voltage reference - Silicon epitaxial planar chip struction - High reliability - Glass sealed envelope - Small surface mounting type - Lead-free parts for green partner meet RoHS - Environment substance directive request Formosa MS Package outline SOD-80 .146(3.7) .019(.48) .130(3.3) .011(.28) SOLDERABLE ENDS .063(1.6) .055(1.4) Mechanical data - Case : Glass Mini-Melf / SOD-80 - Terminals :Plated terminals, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.03 gram Dimensions...
