RLZ7.5 Datasheet | Formosa MS

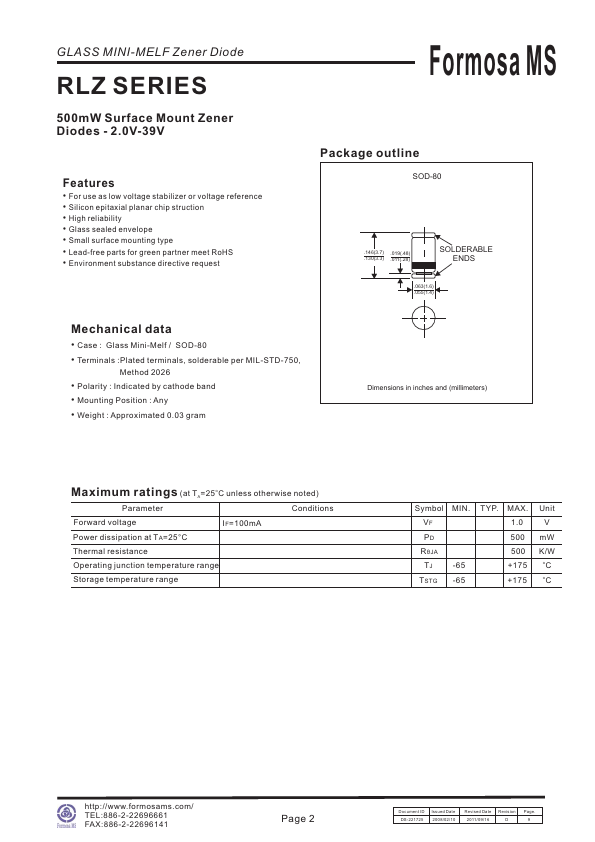

Features - For use as low voltage stabilizer or voltage reference - Silicon epitaxial planar chip struction - High reliability - Glass sealed envelope - Small surface mounting type - Lead-free parts for green partner meet Ro HS - Environment substance directive request Formosa MS Package outline SOD-80 .146(3.7) .019(.48) .130(3.3) .011(.28) SOLDERABLE ENDS .063(1.6) .055(1.4) Mechanical data - Case : Glass Mini-Melf / SOD-80 - Terminals :Plated terminals, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.03 gram Dimensions in inches and (millimeters) Maximum ratings (at TA=25o C unless otherwise noted) Parameter Conditions Forward voltage IF=100m A Power dissipation at TA=25°C Thermal resistance Operating junction temperature range Storage temperature range Symbol MIN. RθJA -65 TSTG -65 TYP. MAX. 1.0 500 500 +175 +175 Unit V m W K/W o C o C http://.formosams./ TEL:886-2-22696661 FAX:886-2-22696141...
