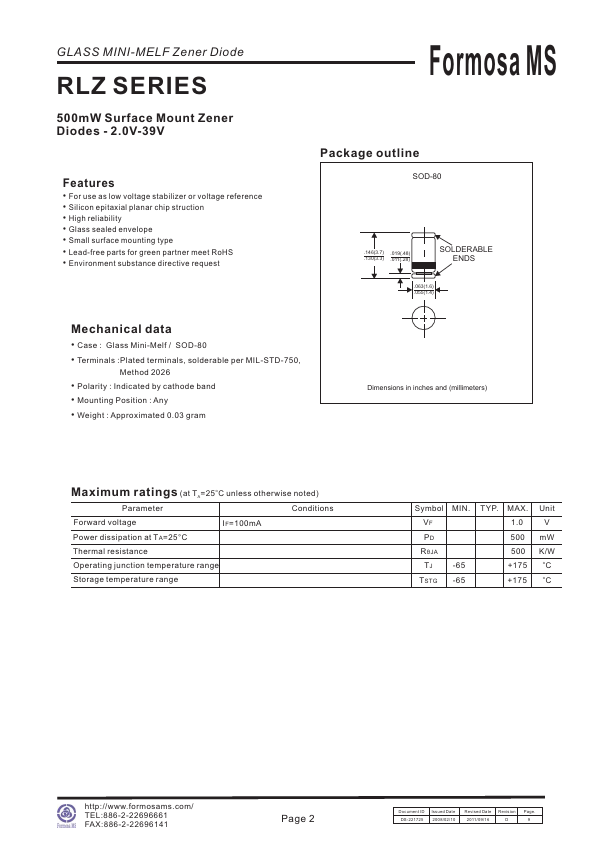

RLZ8.2 Overview
GLASS MINI-MELF Zener Diode RLZ SERIES 500mW Surface Mount Zener Diodes - 2.0V-39V.
RLZ8.2 Key Features
- For use as low voltage stabilizer or voltage reference
- Silicon epitaxial planar chip struction
- High reliability
- Glass sealed envelope
- Small surface mounting type
- Lead-free parts for green partner meet RoHS
- Environment substance directive request
- Case : Glass Mini-Melf / SOD-80
- Terminals :Plated terminals, solderable per MIL-STD-750
- Polarity : Indicated by cathode band
