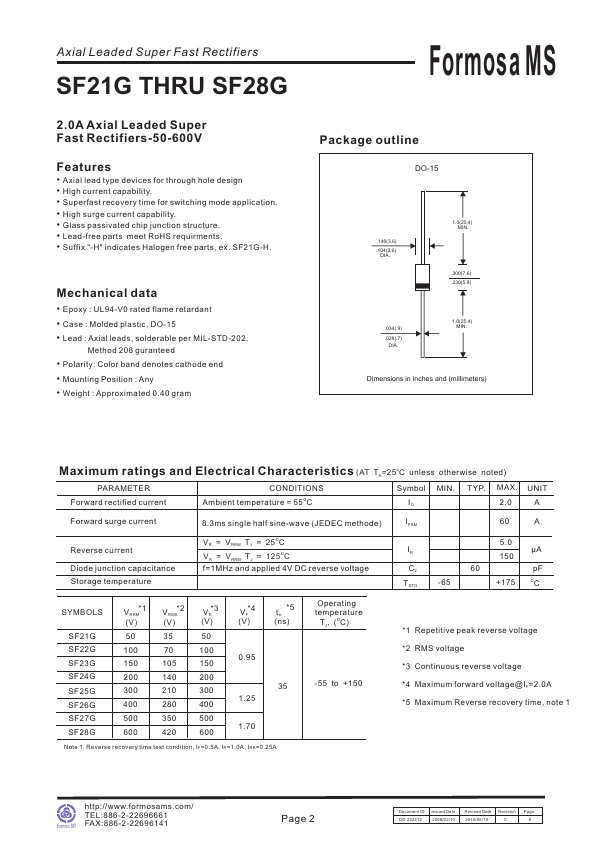

SF23G Description
Axial Leaded Super Fast Rectifiers SF21G THRU SF28G 2.0A Axial Leaded Super Fast Rectifiers-50-600V.
SF23G Key Features
- Axial lead type devices for through hole design
- High current capability
- Superfast recovery time for switching mode application
- High surge current capability
- Glass passivated chip junction structure
- Lead-free parts meet RoHS requirments
- Suffix "-H" indicates Halogen free parts, ex. SF21G-H
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, DO-15
- Lead : Axial leads, solderable per MIL-STD-202
