UDZ18B-FL-Q1 Overview

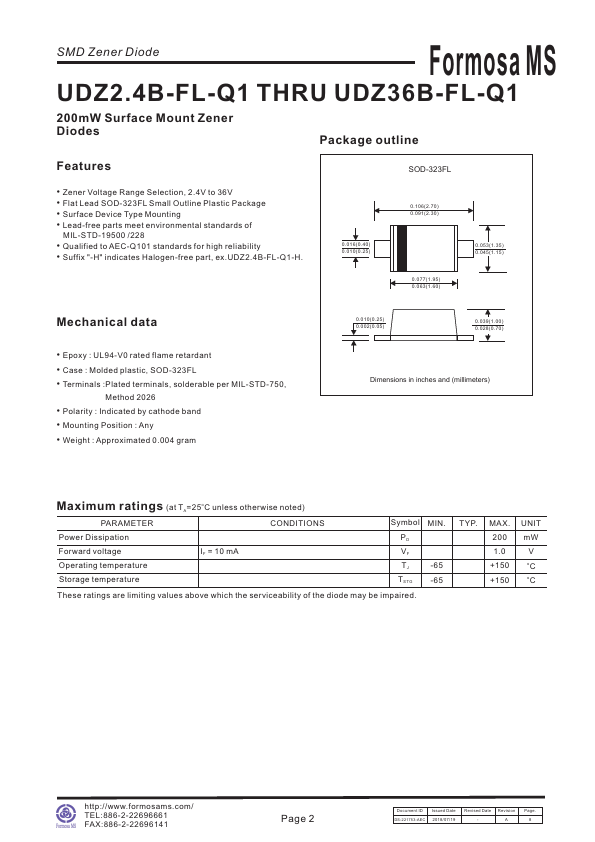

SMD Zener Diode Formosa MS UDZ2.4B-FL-Q1 THRU UDZ36B-FL-Q1 200mW Surface Mount Zener Diodes Package outline.
UDZ18B-FL-Q1 Key Features
- Zener Voltage Range Selection, 2.4V to 36V
- Flat Lead SOD-323FL Small Outline Plastic Package
- Surface Device Type Mounting
- Qualified to AEC-Q101 standards for high reliability
- Suffix "-H" indicates Halogen-free part, ex.UDZ2.4B-FL-Q1-H
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-323FL
- Terminals :Plated terminals, solderable per MIL-STD-750
- Polarity : Indicated by cathode band
- Mounting Position : Any
