UDZ2.7B-Q1 Overview

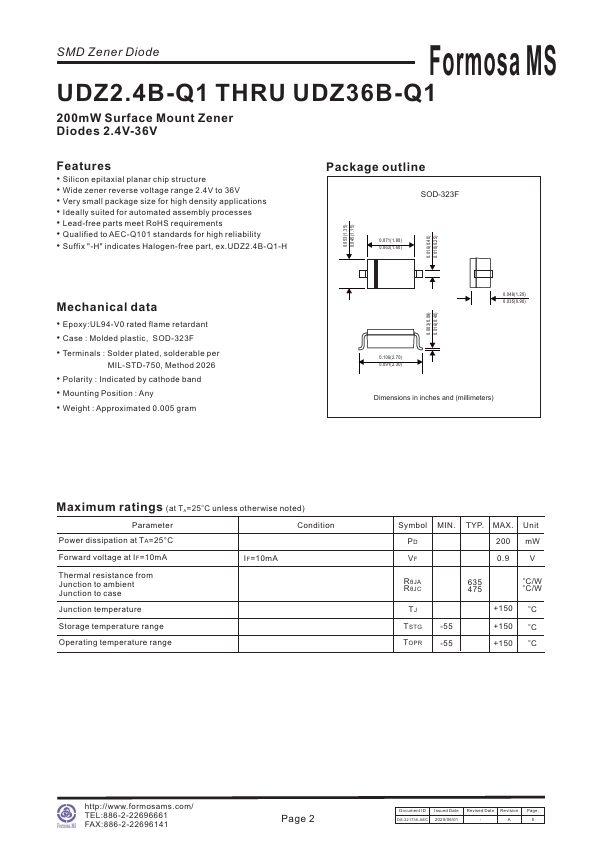

SMD Zener Diode Formosa MS UDZ2.4B-Q1 THRU UDZ36B-Q1 200mW Surface Mount Zener Diodes 2.4V-36V.
UDZ2.7B-Q1 Key Features
- Silicon epitaxial planar chip structure
- Wide zener reverse voltage range 2.4V to 36V
- Very small package size for high density
UDZ2.7B-Q1 Applications
- Ideally suited for automated assembly processes
