Formosa MS UDZ20B
SMD Zener Diode
| Part No. | UDZ20B |
|---|---|
| Datasheet | UDZ20B Download |
| Manufacturer |  Formosa MS |
| Description | SMD Zener Diode |
| Buy | Stock & Price |

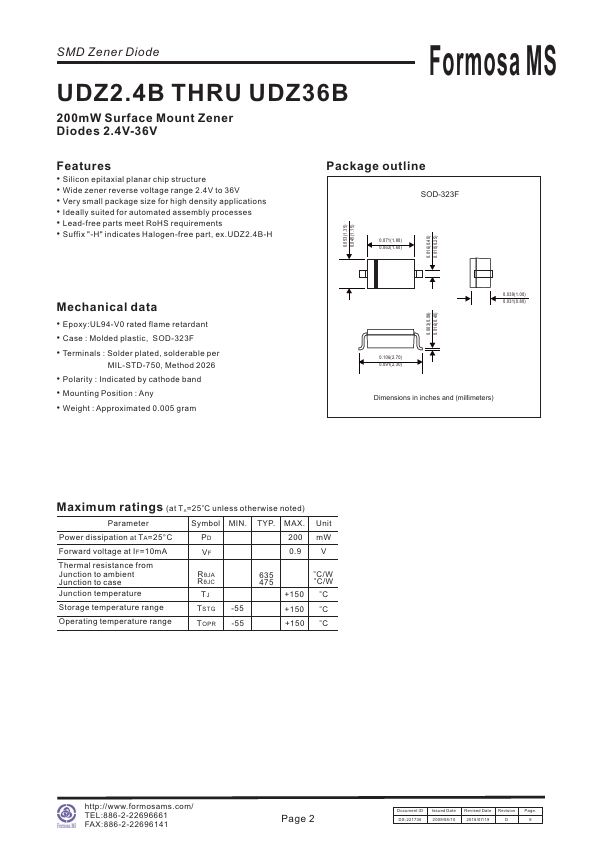

FEATURES
● Silicon epitaxial planar chip structure● Wide zener reverse voltage range 2.4V to 36V
● Very small package size for high density applications
● Ideally suited for automated assembly processes
● Lead-free parts meet RoHS requirements
● Suffix "-H" indicates Halogen-free part, ex.UDZ2.4B-H 0.053(1.35) 0.045(1.15) Package outline SOD-323F 0.071(1.80) 0.063(1.60) 0.016(0.40) 0.010(0.25) Mechanical data
● Epoxy:UL94-V0 rated flame retardant
● Case : Molded plastic, SOD-323F
● Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
● Polarity : Indicated by cathode band
● Mounting Position : Any

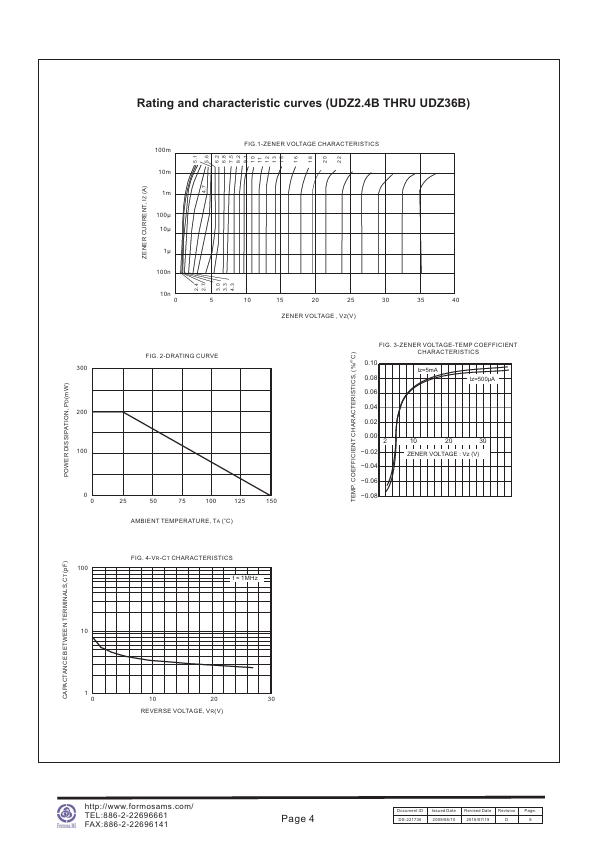

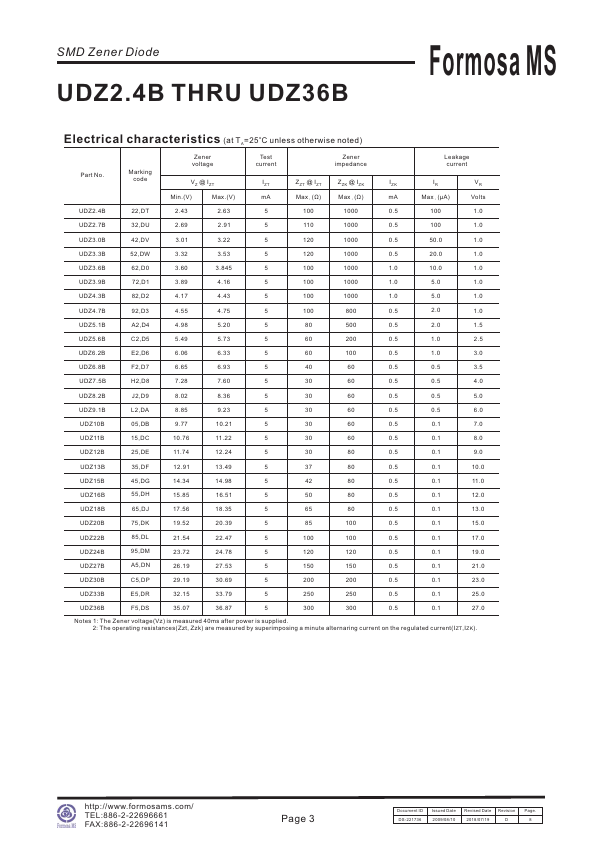

● Weight : Approximated 0.005 gram 0.003(0.08) 0.016(0.40) 0.039(1.00) 0.031(0.80) 0.106(2.70) 0.091(2.30) Dimensions in inches and (millimeters) Maximum ratings (at TA=25oC unless otherwise noted) Parameter Symbol MIN. TYP. MAX. Unit Power dissipation at TA=25°C PD 200 mW Forward voltage at IF=10mA Thermal resistance from Junction to ambient Junction to case Junction temperatu...
