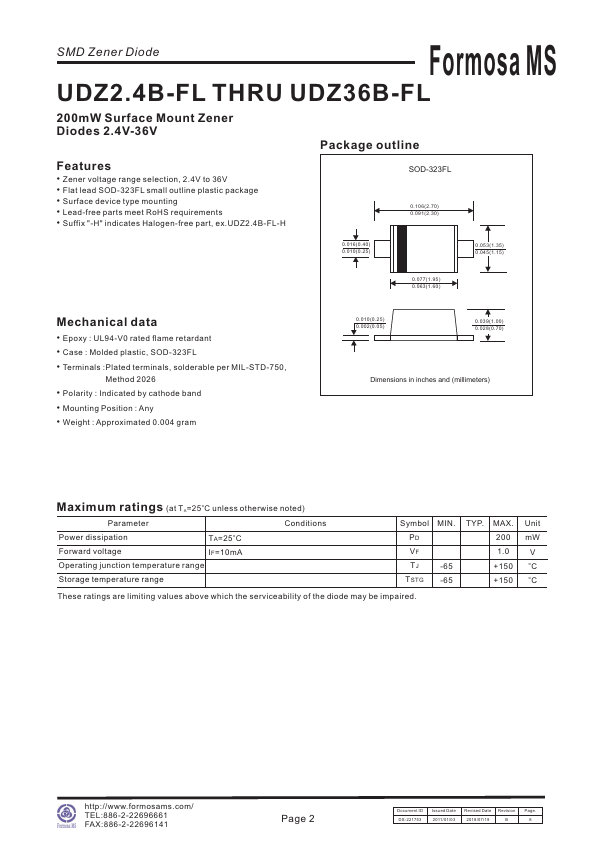

Datasheet Summary
SMD Zener Diode
Formosa MS
UDZ2.4B-FL THRU UDZ36B-FL
200mW Surface Mount Zener Diodes 2.4V-36V
Package outline
Features
- Zener voltage range selection, 2.4V to 36V
- Flat lead SOD-323FL small outline plastic package
- Surface device type mounting
- Lead-free parts meet RoHS requirements
- Suffix "-H" indicates Halogen-free part, ex.UDZ2.4B-FL-H
SOD-323FL
0.106(2.70) 0.091(2.30)
0.016(0.40) 0.010(0.25)
0.053(1.35) 0.045(1.15)
0.077(1.95) 0.063(1.60)
Mechanical data
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-323FL
- Terminals :Plated terminals, solderable per MIL-STD-750,
Method 2026
- Polarity : Indicated by cathode band
- Mounting Position : Any
-...
