UDZ33B-FL Overview

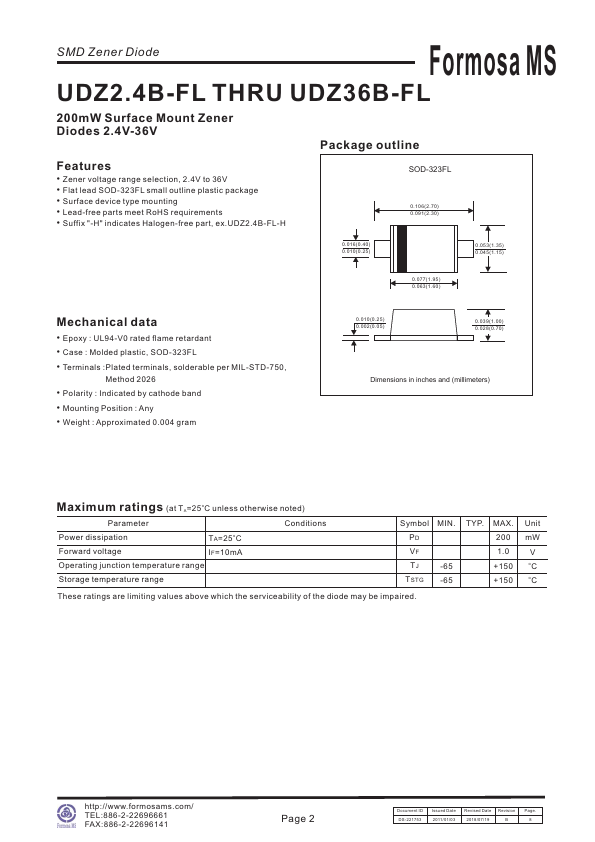

SMD Zener Diode Formosa MS UDZ2.4B-FL THRU UDZ36B-FL 200mW Surface Mount Zener Diodes 2.4V-36V Package outline.
UDZ33B-FL Key Features
- Zener voltage range selection, 2.4V to 36V
- Flat lead SOD-323FL small outline plastic package
- Surface device type mounting
- Lead-free parts meet RoHS requirements
- Suffix "-H" indicates Halogen-free part, ex.UDZ2.4B-FL-H
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-323FL
- Terminals :Plated terminals, solderable per MIL-STD-750
- Polarity : Indicated by cathode band
- Mounting Position : Any
