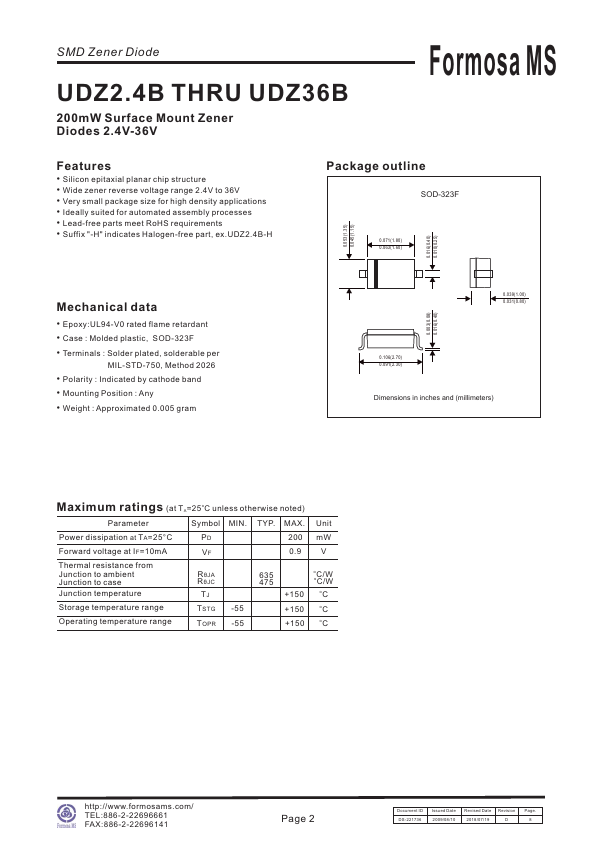

UDZ4.3B Overview
Key Features
- Silicon epitaxial planar chip structure
- Wide zener reverse voltage range 2.4V to 36V
- Very small package size for high density applications
- Ideally suited for automated assembly processes
- Lead-free parts meet RoHS requirements
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-323F
- Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
- Polarity : Indicated by cathode band
- Mounting Position : Any
