FYLS-0603UEC - LED LAMP

Description

Dice material: AlInGaP.

Emitting Color: hight Orange.

Lens Color: Water clear.

Features

Compatible with automatic placement equipment.
Compatible with reflow solder process.

Foryard

📥 Download Datasheet

Datasheet Details

Part number	FYLS-0603UEC
Manufacturer	Foryard
File Size	345.87 KB
Description	LED LAMP
Datasheet	FYLS-0603UEC Datasheet

📁 Similar Datasheet

FYL-3014IRAB - LED (Ningbo Foryard)
FYL-3014IRAC1A - LED (Ningbo Foryard)
FYL-3014IRAT1A - LED (Ningbo Foryard)
FYL-3014IRBB - LED (Ningbo Foryard)
FYL-3014IRBC - LED (Ningbo Foryard)
FYL-3014IRBC - LED (Ningbo Foryard)
FYL-3014IRBC1A - LED (Ningbo Foryard)
FYL-3014IRBT1A - LED (Ningbo Foryard)
FYL-3014IRCB - LED (Ningbo Foryard)
FYL-3014IRCC1A - LED (Ningbo Foryard)

Other Datasheets by Foryard

Full PDF Text Transcription

Click to expand full text

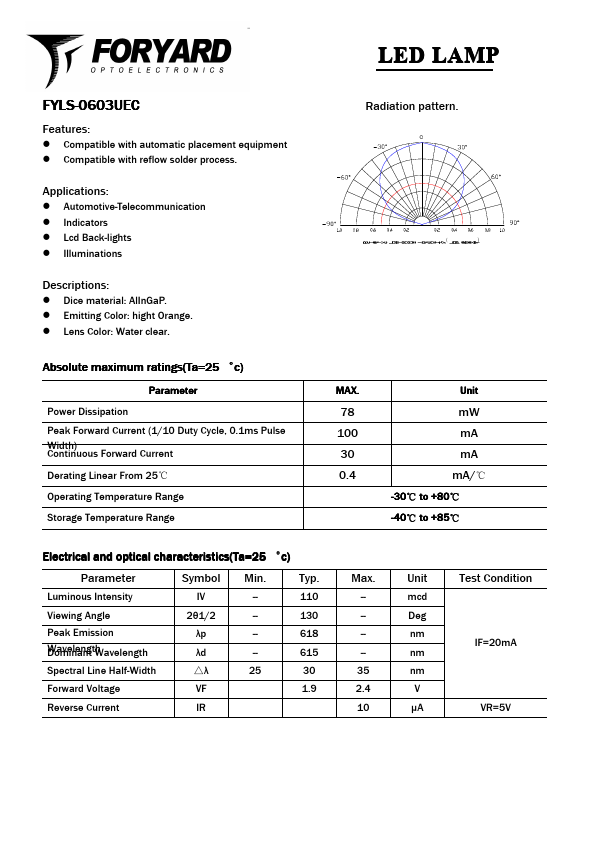

LED LAMP FYLS-0603UEC Features: � Compatible with automatic placement equipment � Compatible with reflow solder process. Applications: � Automotive-Telecommunication � Indicators � Lcd Back-lights � Illuminations Descriptions: � Dice material: AlInGaP. � Emitting Color: hight Orange. � Lens Color: Water clear. Absolute maximum ratings(Ta=25 с) Parameter Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) Continuous Forward Current Derating Linear From 25℃ Operating Temperature Range Storage Temperature Range Radiation pattern. evitaleR suonoimuL �ytisnetnI POL ︶1=xam@ MAX. 78 100 30 0.4 Unit mW mA mA mA/℃ -30℃ to +80℃ -40℃ to +85℃ Electrical and optical characteristics(Ta=25 с) Parameter Luminous Intensity Symbol Min. Typ. Max.
