Fuji Electric ESAD25-02N
FAST RECOVERY DIODE
| Part No. | ESAD25-02N |
|---|---|
| Datasheet | ESAD25-02N Download |
| Manufacturer |  Fuji Electric |
| Description | FAST RECOVERY DIODE |
| Buy | Stock & Price |
FEATURES
High voltage by mesa design High reliabilityAPPLICATIONS

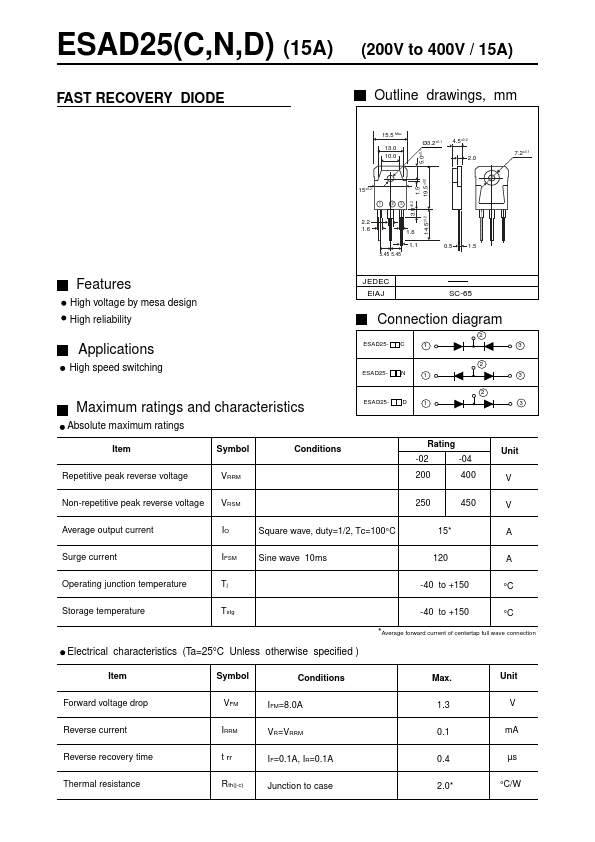

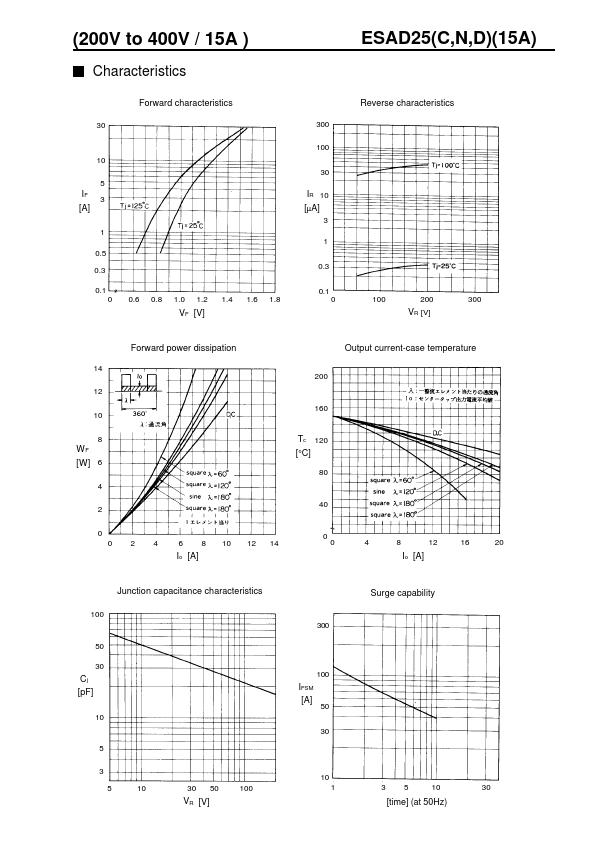

High speed switching Maximum ratings and characteristics Absolute maximum ratings Item Symbol Conditions Repetitive peak reverse voltage VRRM JEDEC EIAJ SC-65 Connection diagram ESAD25- C 1 2 3 ESAD25- N 1 ESAD25- D 1 2 3 2 3 Rating Unit -02 -04 200 400 V Non-repetitive peak reverse voltage VRSM 250 450 V Average output current IO Square wave, duty=1/2, Tc=100°C 15* A Surge current IFSM Sine wave 10ms 120 A Operating junction temperature Tj -40 to +150 °C Storage temperature Tstg Electrical characteristics (Ta=25°C Unless otherwise specified ) -40 to +150 °C *Average forward current of centertap full wave connection Item Symbol Conditions Max. Unit Forward voltage drop VFM IFM=8.0A 1.3 V Reverse current IRRM VR=VRRM 0.1 mA Reverse recovery time t rr IF=0.1A, IR=0.1A 0.4 µs Thermal resistance Rth(j-c) Junction to case 2.0* °C/W Datasheet pdf - (200V to 400V / 15A ) Characteristics ESAD25(C,N,D)(15A) Forward characteristi...
