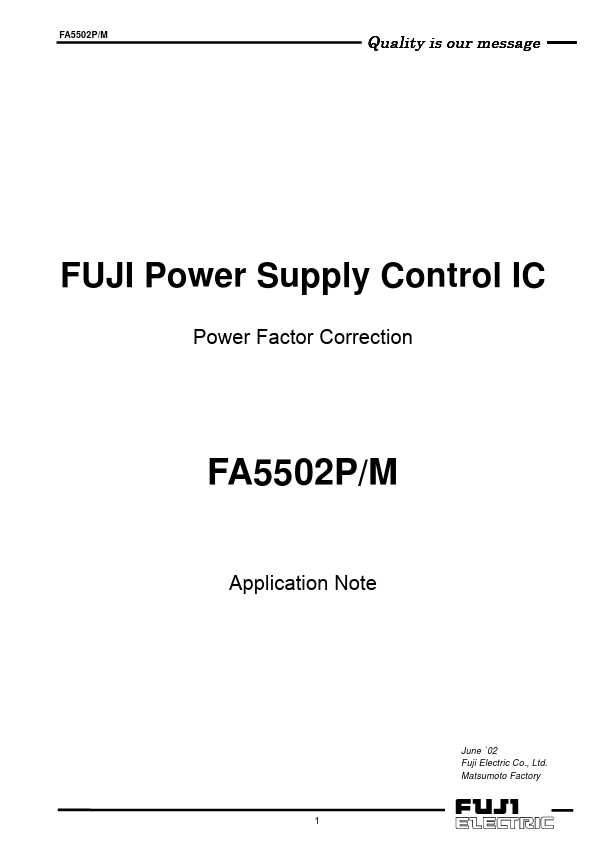

Fuji Electric FA5502M
FA5502P/M is a control IC for a power factor correction system. This IC uses a CMOS device with high dielectric strength (30V) to implement low power consumption. This IC uses the average current control system to ensure stable operation.| Part No. | FA5502M |
|---|---|
| Datasheet | FA5502M Download |
| Manufacturer |  Fuji Electric |
| Description | Power Supply Controller |
| Buy | Stock & Price |
DESCRIPTION
With this system, a power factor of 99% or better can be achieved. 2.FEATURES
● Low current consumption by CMOS process● Stand-by : 3µA(max), Start-up : 30µA(max), Operating : 4mA(typ)
● Good regulation of PFC output voltage from no-load to full-load
● Drive circuit for connecting a power MOSFET(IOUT = ±1.5A)
● Pulse-by-pulse overcurrent and overvoltage limiting function
● ±2% accuracy reference voltage for setting DC output and overvoltage protection
● Output ON/OFF control function by external signal
● External synchronizing input pin for synchronous operation with other circuits
● Undervoltage lockout function (ON:16.5V, OFF:8.9V)
● 16-pin package (DIP/SOP) 3. Outline DIP-16 (FA5502P) 16 9 6.5 ± 0.2 1 8 19.4 ± 0.3 1.5 ± 0.3 3.4 ± 0.1 7.3 ± 0.5 4.0 ± 0.3 2.54 TYP 0.5 ± 0.1 17.78 ± 0.3 0.3 ± 0.1 7.6 ± 0.2 0º - 15º SOP-16 (FA5502M) 16 9 0.15 ± 0.05 0. 75 ± 0. 1 5.3 ± 0.1 7.8 ± 0.2 1 8 10.2 ± 0.1 10º - 0º 1. 80 ± 0. 05 0. 10 ± 0. 10 0.08 1.27 0.40 ± 0.05 4 FA5502P/M 4. Blo...
