Fujitsu MB7072E

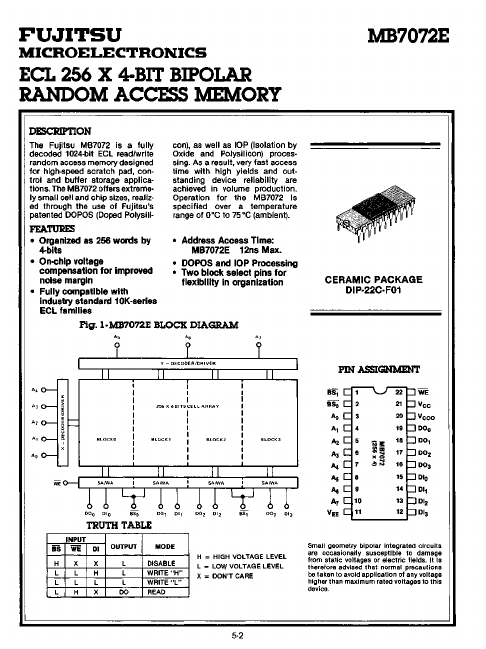

MB7072 is a fully decoded 1024-bit ECl read/write random access memory designed for high-speed scratch pad, con· trol and buffer storage applica· tions. The MB7072 offers extremely small cell and chip sizes, realized through the use of Fujitsu's patented DOPOS (Doped Polysili- con), as well as lOP (Isolation by Oxide and Polysilicon) processing.| Part No. | MB7072E |
|---|---|
| Datasheet | MB7072E Download |
| Manufacturer |  Fujitsu |
| Description | ECL RAM |
| Buy | Stock & Price |

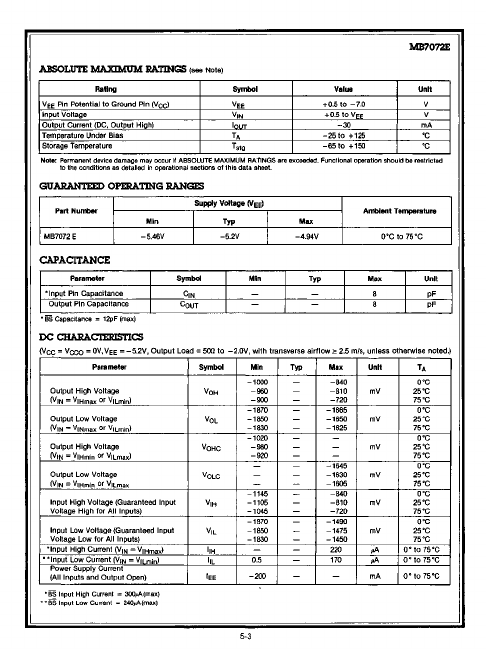

ABSOLUTE MAXIMUM RATINGS
(see Note) Rating Symbol Value Unit VEE Pin Potential to Ground Pin (Vccl Input Voltage Output Current (DC, Output High) Temperature Under Bias Storage Temperature VEE VIN lOUT TA Tstg +0.5 to -7.0 V +0.5 to VEE V -30 mA -25 to +125●C -65 to +150
●C Note: Permanent device damage may occur If
ABSOLUTE MAXIMUM RATINGS
are exceeded. Functional operation should be restricted to the conditions as detailed In operational sections of this data sheet. GUARANTEED OPERATING RANGES Part Number Supply Voltage (VEE> Min Typ MB7072 E -5.46V -5.2V Max -4.94V Ambient Temperature O●C to 75●C CAPACITANCE Parameter Symbol Min Typ Max Unit "Input Pin Capacitance CIN - - 8 pF Output Pin Capacitance COUT - - 8 pF "BS Capacitance = 12pF (max) DC CHARACTERISTICS (VCC = VCCO = OV, VEE = -5.2V, Output Load = 500 to -2.0V, with transverse airflow 2: 2.5 mIs, unless otherwise noted.) Parameter Output High Voltage (VIN = VIHmax or VILmin) Output Low Voltage (VIN = VINmax or VILmin) Output...
