MB7121E - HiGH SPEED SCHOTTKY TTL PROM

Description

The Fujitsu MB7121 and MB7122 are high speed Schottky TTL electrically field programmable read only memories.

With open collector outputs on the MB7121 and three-state outputs on the MB7122, memory expansion is simple.

The memory Is fabricated with all logic "zeros" (positive logic).

📥 Download Datasheet

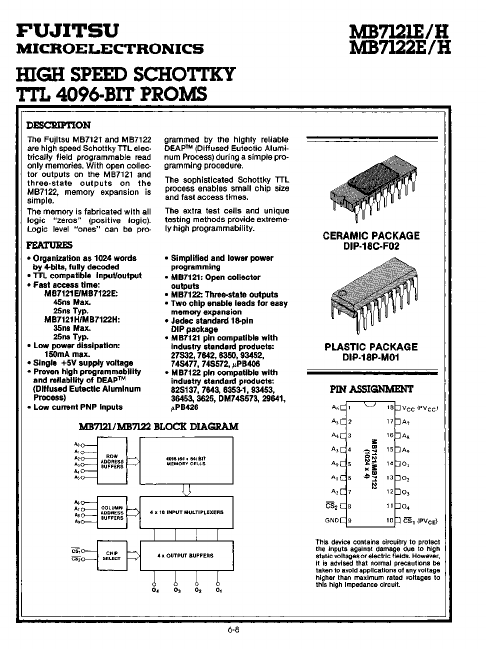

Datasheet preview – MB7121E

Datasheet Details

Part number MB7121E
Manufacturer Fujitsu
File Size 115.07 KB
Description HiGH SPEED SCHOTTKY TTL PROM
Datasheet download datasheet MB7121E Datasheet

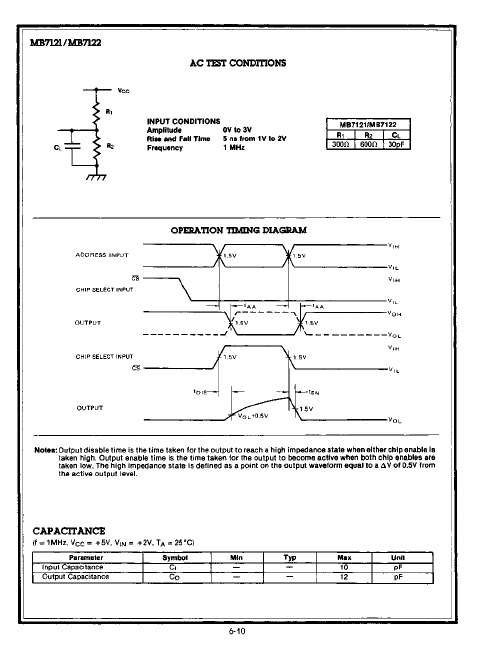

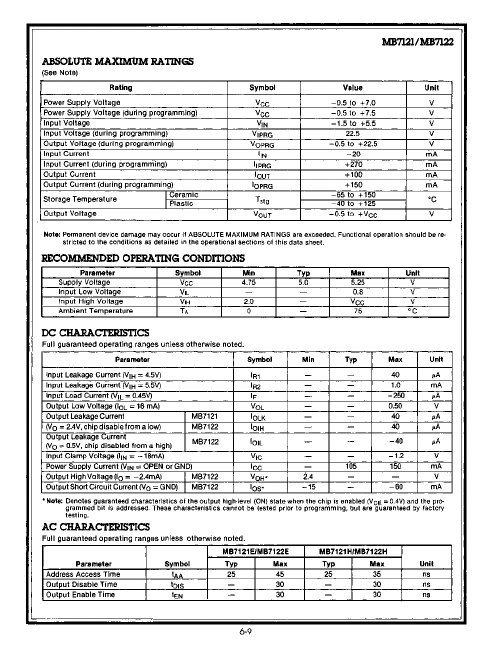

Additional preview pages of the MB7121E datasheet.

📁 Similar Datasheet

  • MB7001 - High Performance Weather Resistant (IP67) Sonar Range Finder (MaxBotix)
  • MB7060 - Weather Resistant (IP67) Sonar Range Finder (MaxBotix)
  • MB7070 - Weather Resistant (IP67) Sonar Range Finder (MaxBotix)
  • MB7360 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7363 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7366 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7367 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7368 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7369 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7375 - HRXL-MaxSonar sensor (MaxBotix)
Other Datasheets by Fujitsu
  • MB7121H - HiGH SPEED SCHOTTKY TTL PROM
  • MB7122E - HiGH SPEED SCHOTTKY TTL PROM
  • MB7122H - HiGH SPEED SCHOTTKY TTL PROM
  • MB7123 - Schottky 4096-Bit Deap PROM
  • MB7123E - Schottky 4096-Bit Deap PROM
  • MB7123H - Schottky 4096-Bit Deap PROM
  • MB7123L - Schottky 4096-Bit Deap PROM
  • MB7124 - Schottky 4096-Bit Deap PROM

Full PDF Text Transcription

Click to expand full text
FUJITSU MICROELECTRONICS IDGH SPEEI) SCHOTTKY TTL 4096·BIT PROMS DESCRIPTION The Fujitsu MB7121 and MB7122 are high speed Schottky TTL electrically field programmable read only memories. With open collector outputs on the MB7121 and three-state outputs on the MB7122, memory expansion is simple. The memory Is fabricated with all logic "zeros" (positive logic). Logic level "ones" can be pro- FEArURES e Organization as 1024 words by 4-blts, fully decoded e TTL compatible input/output e Fast access time: MB7121 ElMB7122E: 45ns Max_ 25nsTyp_ MB7121H/MB7122H: 35ns Max_ 25ns Typ_ e Low power dissipation: 150mA max.
