MB7122E - HiGH SPEED SCHOTTKY TTL PROM

Download the MB7122E datasheet PDF. This datasheet also covers the MB7121E variant, as both devices belong to the same high speed schottky ttl prom family and are provided as variant models within a single manufacturer datasheet.

General Description

The Fujitsu MB7121 and MB7122 are high speed Schottky TTL electrically field programmable read only memories.

With open collector outputs on the MB7121 and three-state outputs on the MB7122, memory expansion is simple.

The memory Is fabricated with all logic "zeros" (positive logic).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB7121E-Fujitsu.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MB7001 High Performance Weather Resistant (IP67) Sonar Range Finder MaxBotix
MB7060 Weather Resistant (IP67) Sonar Range Finder MaxBotix
MB7070 Weather Resistant (IP67) Sonar Range Finder MaxBotix
MB7360 HRXL-MaxSonar sensor MaxBotix
MB7363 HRXL-MaxSonar sensor MaxBotix

Other Datasheets by Fujitsu Semiconductor Limited

Part Number Description
MB7122H HiGH SPEED SCHOTTKY TTL PROM
MB7121E HiGH SPEED SCHOTTKY TTL PROM
MB7121H HiGH SPEED SCHOTTKY TTL PROM
MB7123 Schottky 4096-Bit Deap PROM
MB7123E Schottky 4096-Bit Deap PROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

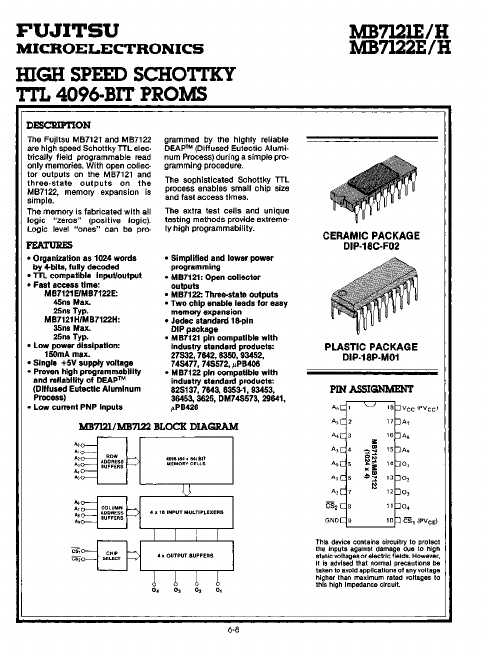

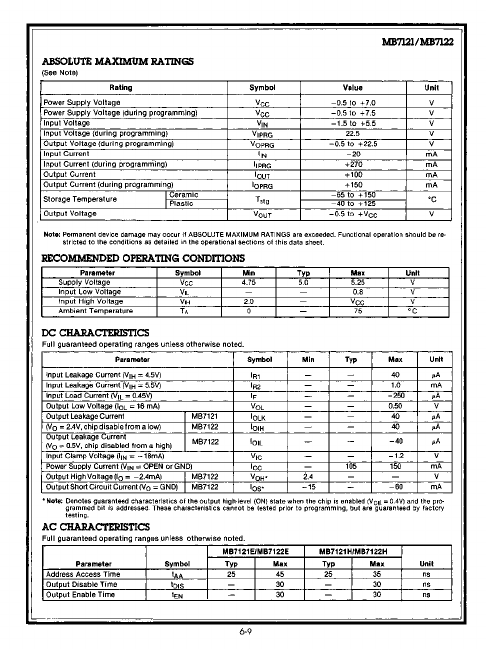

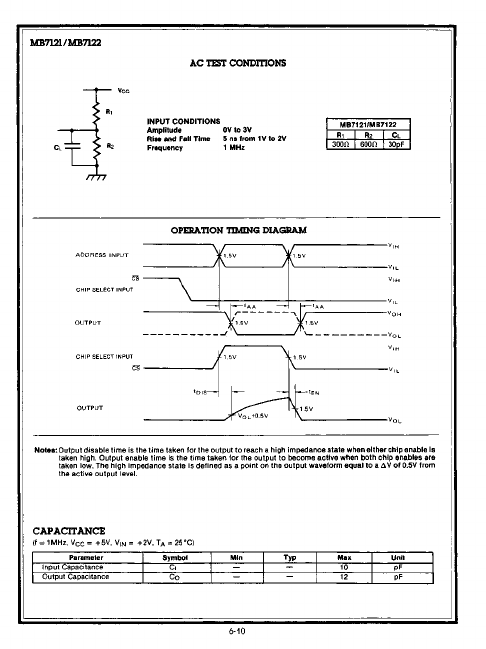

FUJITSU MICROELECTRONICS IDGH SPEEI) SCHOTTKY TTL 4096·BIT PROMS DESCRIPTION The Fujitsu MB7121 and MB7122 are high speed Schottky TTL electrically field programmable read only memories. With open collector outputs on the MB7121 and three-state outputs on the MB7122, memory expansion is simple. The memory Is fabricated with all logic "zeros" (positive logic). Logic level "ones" can be pro- FEArURES e Organization as 1024 words by 4-blts, fully decoded e TTL compatible input/output e Fast access time: MB7121 ElMB7122E: 45ns Max_ 25nsTyp_ MB7121H/MB7122H: 35ns Max_ 25ns Typ_ e Low power dissipation: 150mA max.
