MB7128H - HiGH SPEED SCHOTTKY TTL PROM

This page provides the datasheet information for the MB7128H, a member of the MB7127E HiGH SPEED SCHOTTKY TTL PROM family.

Description

The Fujitsu MB7127/MB7128 are high speed Schottky TTL electrically field programmable read only memories.

With open collector outputs on the MB7127 and three-state outputs on the MB7128, memory expansion is simple.

The memory is fabricated with all logic "zeros" (positive logic).

Features

  • Organization: 2048 words by 4-bits.
  • TTL compatible input/output.
  • Fast access time: M B7127E1M B7128E: 55 ns Max. 30 ns Typ. MB7127H/MB7128H: 45 ns Max. 30 ns Max.
  • Low Power Dissipation: 155 mA Max.
  • Single +5V supply voltage.
  • Proven high programmability and reliability of DEApTM (Diffused Eutectic Aluminum Process).
  • Simplified and lower power programming.
  • Low current PNP inputs.
  • MB7127: Open collector outputs.

📥 Download Datasheet

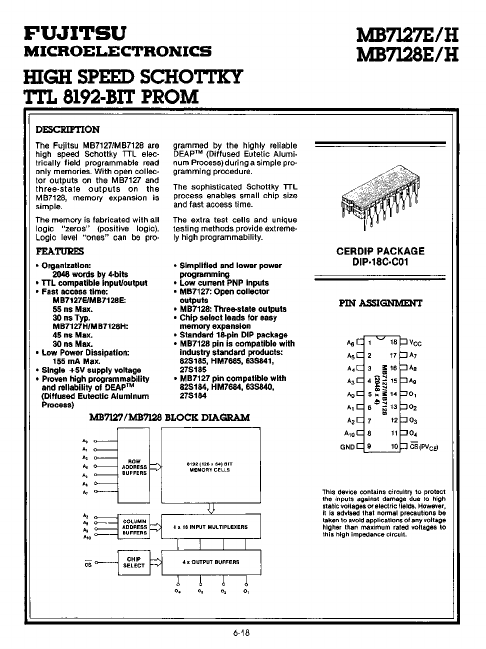

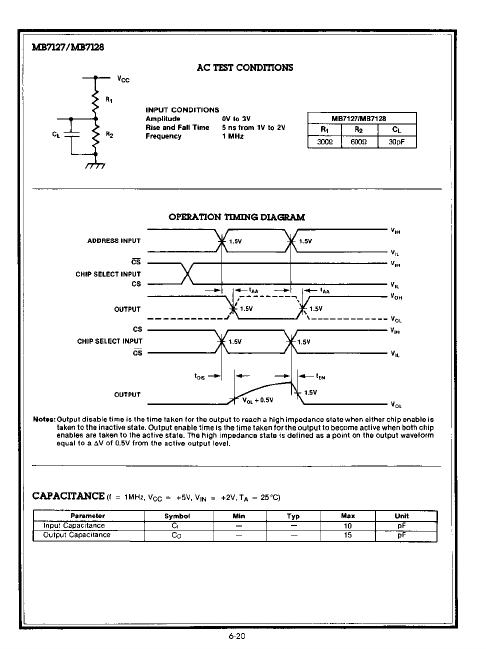

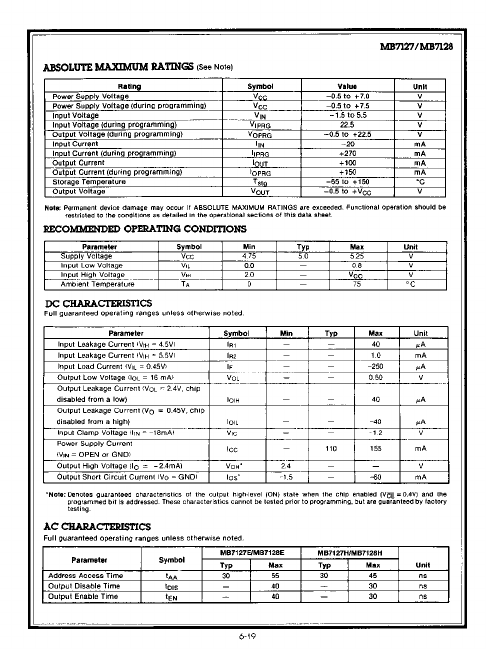

Datasheet preview – MB7128H
