MB7141E - High Speed Schottky TTL PROM

Description

The Fujitsu MB7141 and MB7142 are high speed electrically field programmable read only memories.

With open collector outputs on the MB7141 and three-state outputs on the MB7142.

memory expansion is simple.

Features

  • Organization: 4096 words x 8 bits, fully decoded.
  • TTL compatible Input/output.
  • Fast Access Time: MB7141E1MB7142E: 65 ns Max. 45 ns Typ_ MB7141 H/MB7142H: 55 ns Max. 45 ns Typ_ The sophisticated passive isolation termed lOP (Isolation by Oxide and Polysilicon) with thin epitaxial layer and schottky TTL process permits minimal chip size and fast access time. The extra test cell and unique testing methods provide enhanced correlation between programmed and unprogrammed.

📥 Download Datasheet

Datasheet preview – MB7141E

Datasheet Details

Part number MB7141E
Manufacturer Fujitsu
File Size 126.93 KB
Description High Speed Schottky TTL PROM
Datasheet download datasheet MB7141E Datasheet

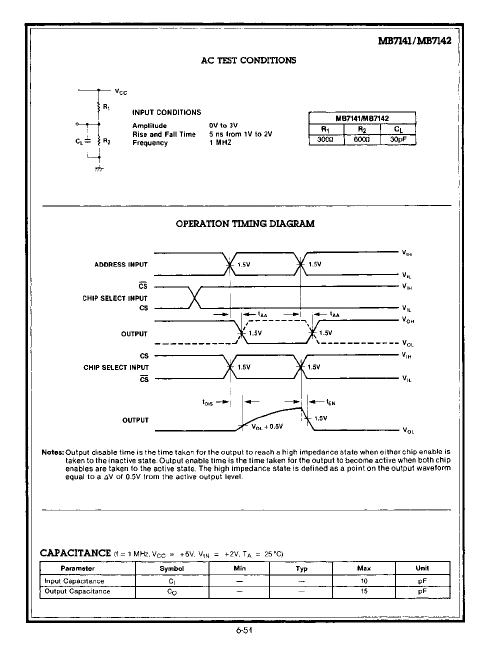

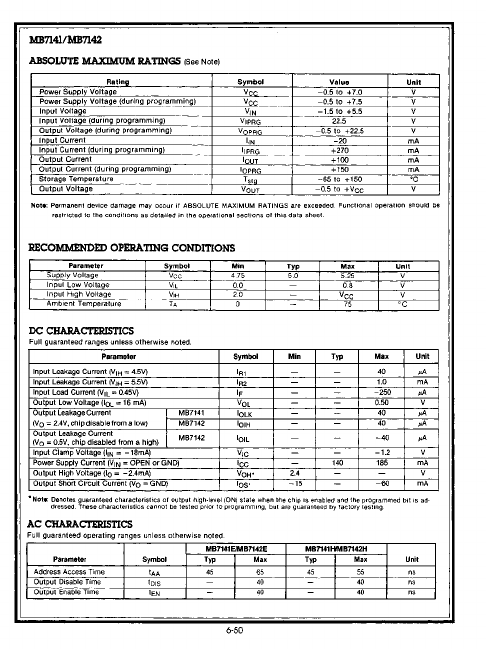

Additional preview pages of the MB7141E datasheet.

📁 Similar Datasheet

  • MB7001 - High Performance Weather Resistant (IP67) Sonar Range Finder (MaxBotix)
  • MB7060 - Weather Resistant (IP67) Sonar Range Finder (MaxBotix)
  • MB7070 - Weather Resistant (IP67) Sonar Range Finder (MaxBotix)
  • MB7360 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7363 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7366 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7367 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7368 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7369 - HRXL-MaxSonar sensor (MaxBotix)
  • MB7375 - HRXL-MaxSonar sensor (MaxBotix)
Other Datasheets by Fujitsu

Full PDF Text Transcription

Click to expand full text

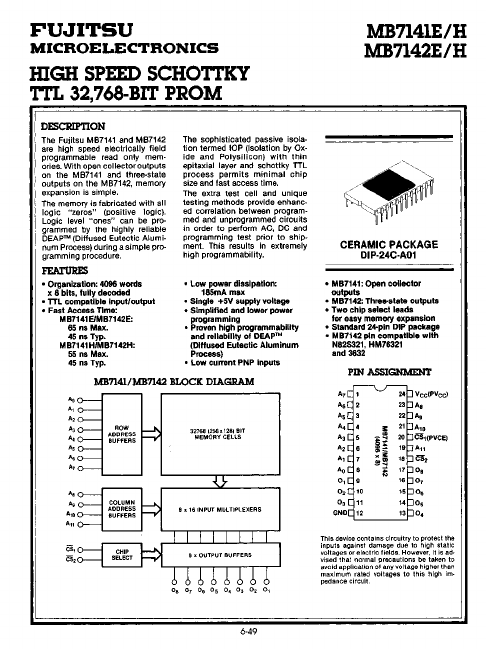

FUJITSU MICROELECTRONICS lUGH SPEEI] SCHOTTKY TTL 32,768·BIT PROM MB7141E/H MB7142E/H DESCRIPTION The Fujitsu MB7141 and MB7142 are high speed electrically field programmable read only memories. With open collector outputs on the MB7141 and three-state outputs on the MB7142. memory expansion is simple. The memory is fabricated with all logic "zeros" (positive logic). Logic level "ones" can be programmed by the highly reliable DEApTM (Diffused Eutectic Aluminum Process) during a simple programming procedure. FEATURES • Organization: 4096 words x 8 bits, fully decoded • TTL compatible Input/output • Fast Access Time: MB7141E1MB7142E: 65 ns Max. 45 ns Typ_ MB7141 H/MB7142H: 55 ns Max.
