MB8118-12 - NMOS DYNAMIC RANDOM ACCESS MEMORY

Download the MB8118-12 datasheet PDF. This datasheet also covers the MB8118-10 variant, as both devices belong to the same nmos dynamic random access memory family and are provided as variant models within a single manufacturer datasheet.

General Description

The Fujitsu MB8118 is a fully decoded dynamic NMOS random access memory organized as 16,384 one-bit words.

Key Features

  • 16,384 x 1 RAM, 16 pin package.
  • Silicon-gate, Double Poly NMOS, single transistor cell.

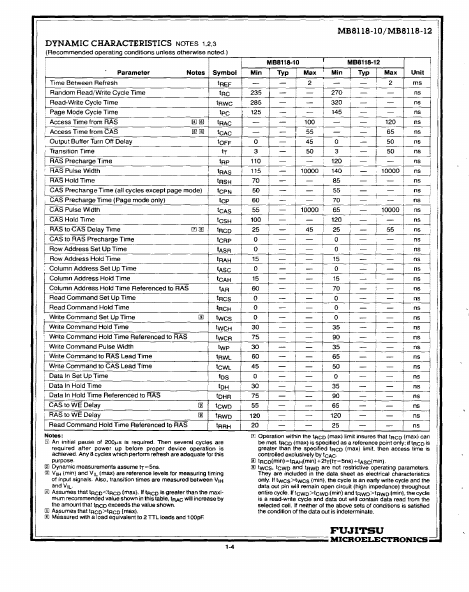

  • Address access time: 100 ns max (MB8118-10) 120 ns max (MB8118-12).
  • Cycle time: 235 ns min (MB8118-10) 270 ns min (MB8118-12).

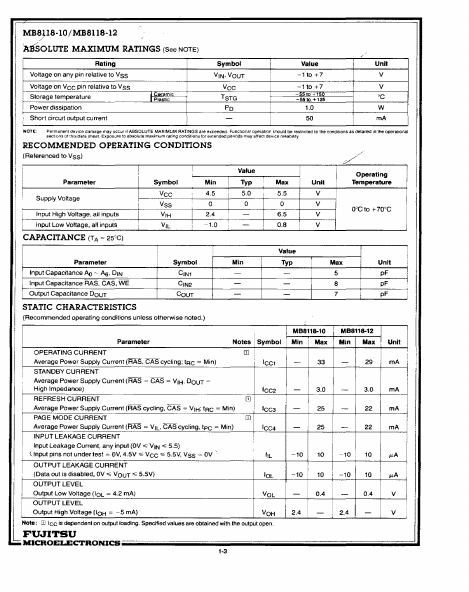

  • Low power: 182mW max (MB8118-10) 160mW max (MB8118-12) 16.5mW max (Standby).
  • +5V single power supply, ±10% tolerance.
  • On chip substrate bias generator The MB8118 is fabricated using silicon-gate NMOS and Fujitsu's advanc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB8118-10-Fujitsu.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MB81 Single Phase Bridge Rectifier Micro Commercial Components
MB810 Single Phase Bridge Rectifier Micro Commercial Components
MB814400A-70PFTN CMOS 4M-Bit DRAM ETC
MB81C4251 1M-Bit Dual Port CMOS DRAM Fujitsu Media Devices
MB81C4253 1M-Bit Dual Port CMOS DRAM Fujitsu Media Devices

Other Datasheets by Fujitsu Semiconductor Limited

Part Number Description
MB8118-10 NMOS DYNAMIC RANDOM ACCESS MEMORY
MB811643242A SDRAM
MB811643242A-100 SDRAM
MB811643242A-125 SDRAM
MB811643242A-67 SDRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

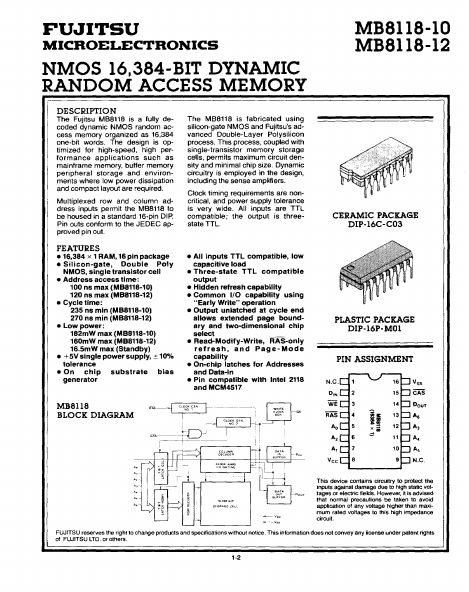

FUJITSU MICROELECTRONICS NMOS 16,384-BIT DYNAMIC RANDOM ACCESS MEMORY MB8118-10 MB8118-12 DESCRIPTION The Fujitsu MB8118 is a fully decoded dynamic NMOS random access memory organized as 16,384 one-bit words. The design is optimized for high-speed, high performance applications such as mainframe memory, buffer memory peripheral storage and environments where low power dissipation and compact layout are required. Multiplexed row and column address inputs permit the MB8118 to be housed in a standard 16-pin DIP. Pin outs conform to the JEDEC approved pin out.
