MB8167-70 - NMOS STATIC RANDOM ACCESS MEMORY

Download the MB8167-70 datasheet PDF. This datasheet also covers the MB8167-55 variant, as both devices belong to the same nmos static random access memory family and are provided as variant models within a single manufacturer datasheet.

General Description

The Fujitsu MB8167 is a 16384 words by 1 bit static random access memory fabricated using N-channeJ silicon gate MOS technology.

Separate Input/output pins are provided.

All devices are fully compatible with TTL logic families In all respects: inputs, output and the use of a single +5V DC supply.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB8167-55-Fujitsu.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MB81 Single Phase Bridge Rectifier Micro Commercial Components
MB810 Single Phase Bridge Rectifier Micro Commercial Components
MB814400A-70PFTN CMOS 4M-Bit DRAM ETC
MB81C4251 1M-Bit Dual Port CMOS DRAM Fujitsu Media Devices
MB81C4253 1M-Bit Dual Port CMOS DRAM Fujitsu Media Devices

Other Datasheets by Fujitsu Semiconductor Limited

Part Number Description
MB8167-55 NMOS STATIC RANDOM ACCESS MEMORY
MB8167A-45 NMOS STATIC RANDOM ACCESS MEMORY
MB8167A-55 NMOS STATIC RANDOM ACCESS MEMORY
MB8167A-70 NMOS STATIC RANDOM ACCESS MEMORY
MB8168-55 NMOS STATIC RANDOM ACCESS MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

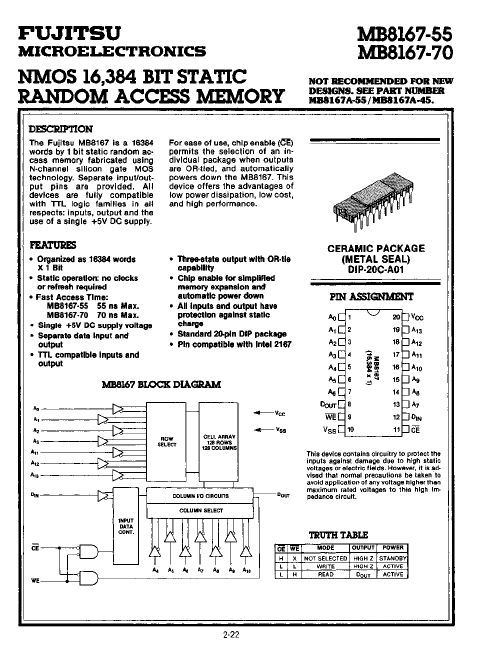

FUJITSU MICROELECTRONICS NMOS 16,384 BIT STATIC RANDOM ACCESS MEMORY MB8167·55 MB8167·70 NOT RECOMMENDED FOR NEW DESIGNS. SEE PART NtJMBER MB8167A-S5/MB8167A-CS. DESCRIPTION The Fujitsu MB8167 is a 16384 words by 1 bit static random access memory fabricated using N-channeJ silicon gate MOS technology. Separate Input/output pins are provided. All devices are fully compatible with TTL logic families In all respects: inputs, output and the use of a single +5V DC supply. For ease of use, chip enable (CE) permits the selection of an individual package when outputs are OR-tied, and automatically powers down the MB8167. This device offers the advantages of low power dissipation, low cost, and high performance.
