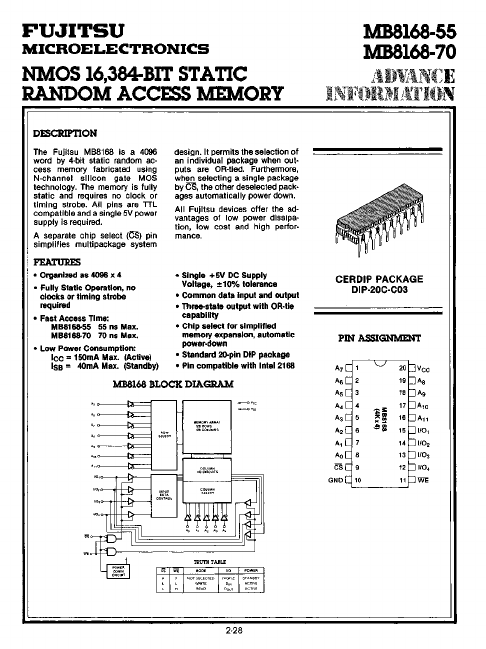

MB8168-55 Description
The Fujitsu MB8168 is a 4096 word by 4-bit static random access memory fabricated using N-channel silicon gate MOS technology. The memory is fully static and requires no clock or timing strobe. All pins are TTL patible and a single 5V power supply is required.
MB8168-55 Key Features
- Organized as 4096 x 4
- Fully Static Operation, no clocks or timing strobe required
- Fast Access Time: MB8166-55 55 ns Max. MB8166-70 70 ns Max
- Low Power Consumption: IcC = 150mA Max. (Active) ISB = 40mA Max. (Standby)
- Single +5V DC Supply Voltage, ±10% tolerance
- mon data Input and output
- Three-state output with OR-tie capability
- Chip select for simplified memory expansion, automatic power-down
- Standard 20-pin DIP package
- Pin patible with Intel 2168
