MB8168-70 - NMOS STATIC RANDOM ACCESS MEMORY

Download the MB8168-70 datasheet PDF. This datasheet also covers the MB8168-55 variant, as both devices belong to the same nmos static random access memory family and are provided as variant models within a single manufacturer datasheet.

General Description

The Fujitsu MB8168 is a 4096 word by 4-bit static random access memory fabricated using N-channel silicon gate MOS technology.

The memory is fully static and requires no clock or timing strobe.

All pins are TTL compatible and a single 5V power supply is required.

Key Features

  • Organized as 4096 x 4.
  • Fully Static Operation, no clocks or timing strobe required.
  • Fast Access Time: MB8166-55 55 ns Max. MB8166-70 70 ns Max.
  • Low Power Consumption: IcC = 150mA Max. (Active) ISB = 40mA Max. (Standby).
  • Single +5V DC Supply Voltage, ±10% tolerance.
  • Common data Input and output.
  • Three-state output with OR-tie capability.
  • Chip select for simplified memory expansion, automatic power-down.
  • Standard 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB8168-55-Fujitsu.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MB81 Single Phase Bridge Rectifier Micro Commercial Components
MB810 Single Phase Bridge Rectifier Micro Commercial Components
MB814400A-70PFTN CMOS 4M-Bit DRAM ETC
MB81C4251 1M-Bit Dual Port CMOS DRAM Fujitsu Media Devices
MB81C4253 1M-Bit Dual Port CMOS DRAM Fujitsu Media Devices

Other Datasheets by Fujitsu Semiconductor Limited

Part Number Description
MB8168-55 NMOS STATIC RANDOM ACCESS MEMORY
MB8167-55 NMOS STATIC RANDOM ACCESS MEMORY
MB8167-70 NMOS STATIC RANDOM ACCESS MEMORY
MB8167A-45 NMOS STATIC RANDOM ACCESS MEMORY
MB8167A-55 NMOS STATIC RANDOM ACCESS MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

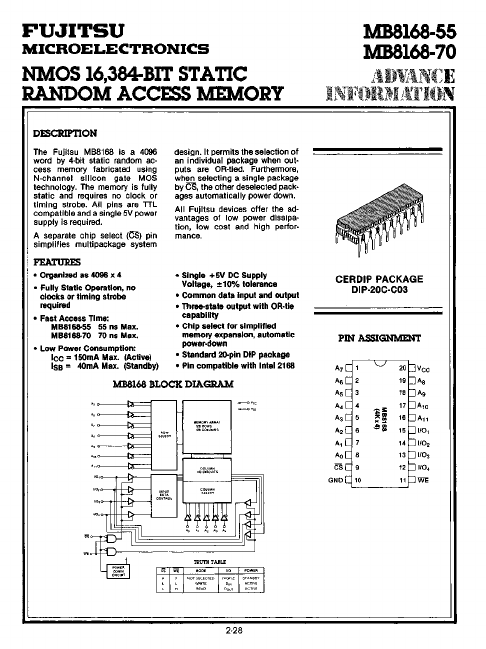

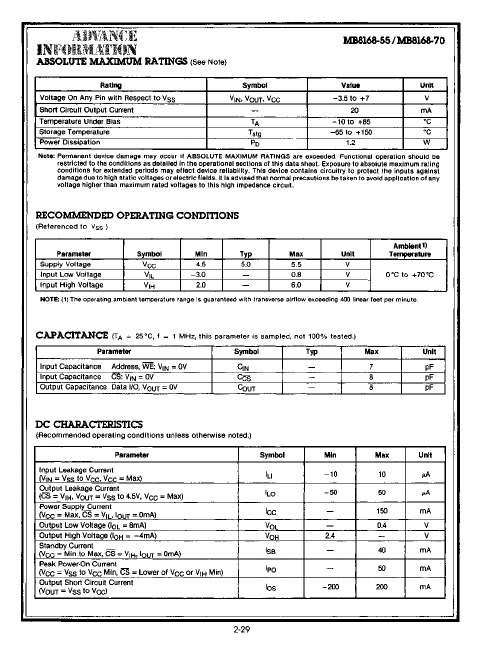

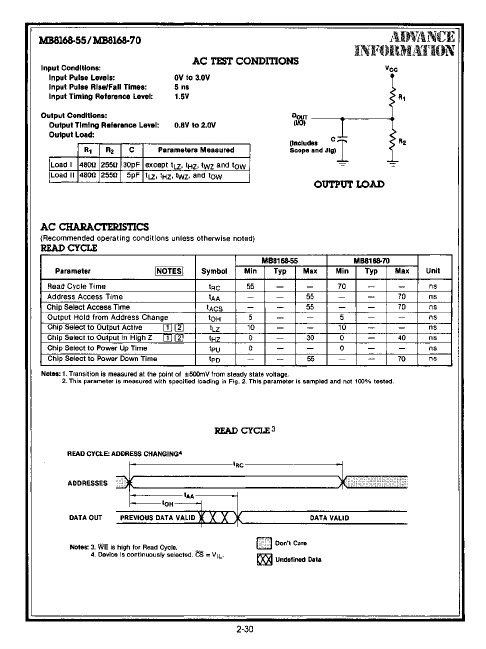

FUJITSU MICROELECTRONICS NMOS 16,384·BIT STATIC RANDOM ACCESS MEMORY MBSl68·55 MBSl68·70 DESCRIPTION The Fujitsu MB8168 is a 4096 word by 4-bit static random access memory fabricated using N-channel silicon gate MOS technology. The memory is fully static and requires no clock or timing strobe. All pins are TTL compatible and a single 5V power supply is required. A separate chip select (CS) pin simplifies multi package system design. It permits the selection of an individual package when outputs are OR-tied. Furthermore, when selecting a single package by CS, the other deselected packages automatically power down. All Fujitsu devices offer the advantages of low power dissipation, low cost and high performance.
