MB8416-X - CMOS STATIC RANDOM ACCESS MEMORY

This page provides the datasheet information for the MB8416-X, a member of the MB8416 CMOS STATIC RANDOM ACCESS MEMORY family.

Description

The Fujitsu MB8416/MB8416-X is a 2048 word by 8-bit static random access memory fabricated with high density, high reliability Complementary MOS silicon-gate technology.

The memory utilizes asynchronous circuitry and may be maintained in any state for an indefinite period of time.

📥 Download Datasheet

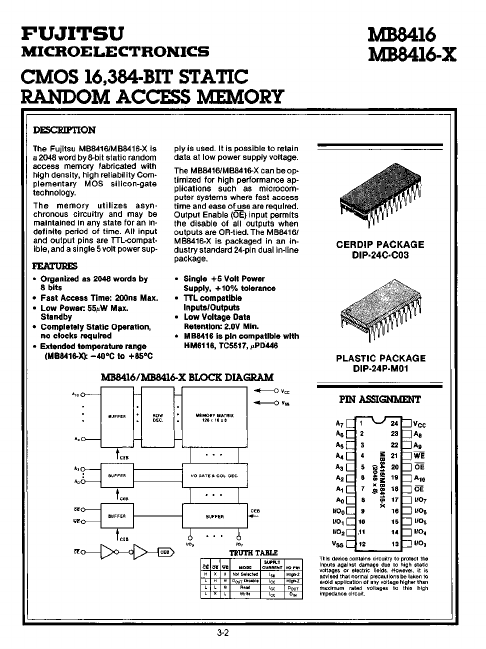

Datasheet preview – MB8416-X

Datasheet Details

Part number MB8416-X
Manufacturer Fujitsu
File Size 79.95 KB
Description CMOS STATIC RANDOM ACCESS MEMORY
Datasheet download datasheet MB8416-X Datasheet

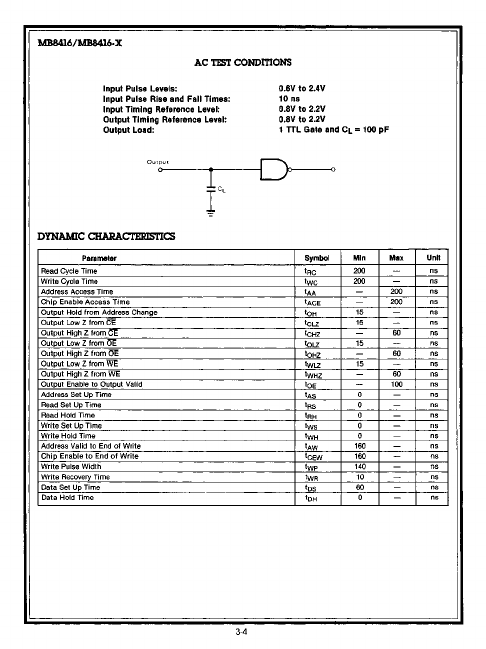

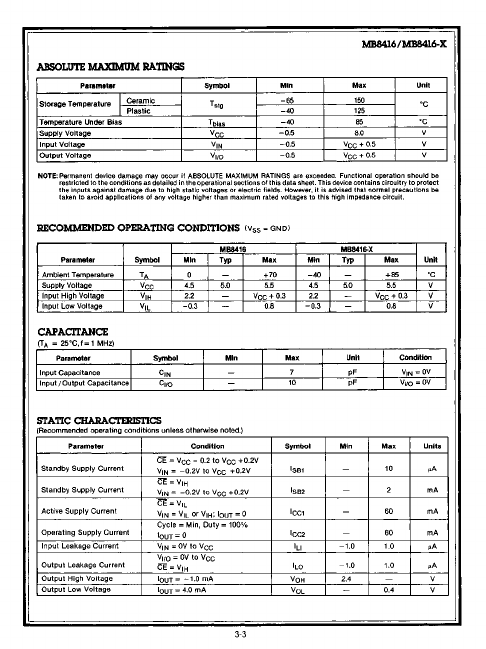

Additional preview pages of the MB8416-X datasheet.

📁 Similar Datasheet

  • MB84 - Single Phase Bridge Rectifier (Micro Commercial Components)
  • MB840 - Socket 478 Pentium 4 Industrial Motherboard User Manual (ETC)
  • MB84256-10LP - CMOS 256K SRAM (ETC)
  • MB8441-45PFQ - CMOS 64K-Bit Dual Port Static RAM (ETC)
  • MB84SD23280E-70PBS - 64M (X16) FLASH MEMORY 8M (X16) SRAM (AMD)
  • MB84SD23280EFA - 64M (X16) FLASH MEMORY 8M (X16) SRAM (AMD)
  • MB84SD23280EFE-70 - 64M (X16) FLASH MEMORY 8M (X16) SRAM (AMD)
  • MB84SF6H6H6L2-70 - FLASH MEMORY (AMD)
  • MB84VA2000 - (MB84VA2000 / MB84VA2001) 8M (X 8) FLASH MEMORY & 2M (X 8) STATIC RAM (Fujitsu Media Devices)
  • MB84VA2002 - (MB84VA2002 / MB84VA2003) 8M (x 8/x 16) FLASH MEMORY & 2M (x 8) STATIC RAM (Fujitsu Media Devices)
Other Datasheets by Fujitsu

Full PDF Text Transcription

Click to expand full text
FUJITSU MICROELECTRONICS CMOS 16,384·BIT STATIC RANDOM ACCESS MEMORY MB8416 MB8416·X DESCRIPTION The Fujitsu MB8416/MB8416-X is a 2048 word by 8-bit static random access memory fabricated with high density, high reliability Complementary MOS silicon-gate technology. The memory utilizes asynchronous circuitry and may be maintained in any state for an indefinite period of time. All input and output pins are TTL-compatible, and a single 5 volt power sup- FEA:l"UmS • Organized as 2048 words by 8 bits • Fast Access Time: 200ns Max_ • Low Power: 55JLW Max_ Standby • Completely Static Operation, no clocks required • Extended temperature range (MB8416-X): -40°C to +85°C ply is used. It is possible to retain data at low power supply voltage.
