MB8416A-12 - CMOS STATIC RANDOM ACCESS MEMORY

Description

The Fujitsu MB8416A is a 2048 word by 8-bit static random access memory fabricated with high density, high reliability Complementary MOS silicongate technology.

The memory utilizes asynchronous circuitry and may be maintained in any state for an indefinite period of time.

Features

  • Organized as 2048 words by 8-bits.
  • Address Access Time: MB8416A-12 120ns Max. MB8416A.
  • 15 150ns Max.
  • Low Power Dissipation: ICC (Active) = 60mA Max. ISB (Standby) = 4mA Max. lOR (Data Retention) = 2mA Max.
  • Completely static operation, no clocks required.
  • Single +5 Volt Power Supply, ±10% tolerance.
  • TTL compatible inputs/outputs.
  • Data Retention: 2.0V Min.
  • Equal Access and Cycle Times.
  • Output timing reference.

📥 Download Datasheet

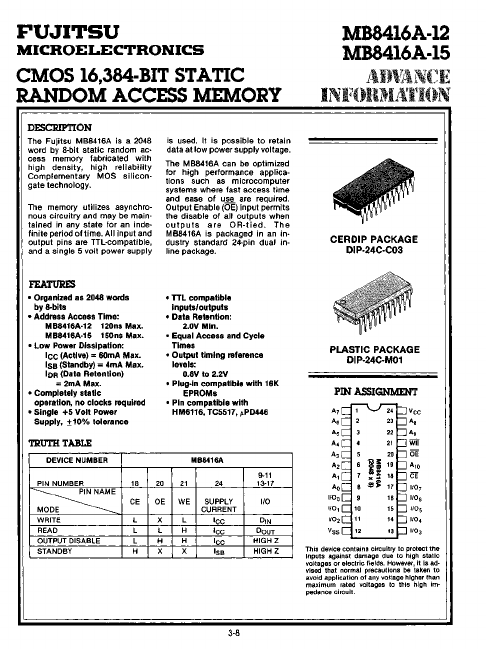

Datasheet preview – MB8416A-12
