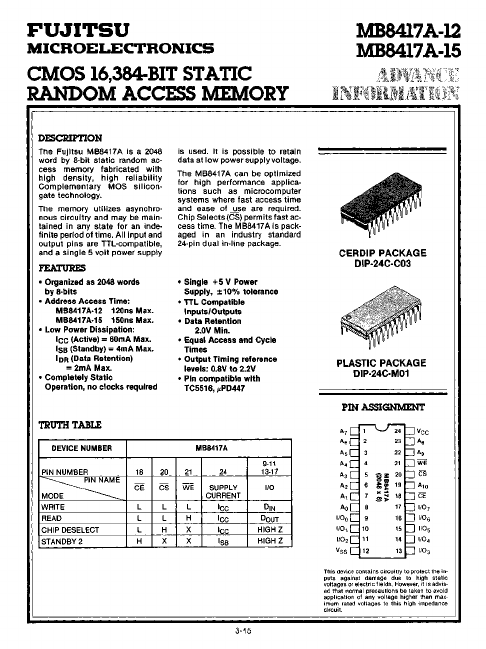

MB8417A-15 Datasheet CMOS STATIC RANDOM ACCESS MEMORY

Manufacturer: Fujitsu Semiconductor Limited

Download the MB8417A-15 datasheet PDF. This datasheet also includes the MB8417A-12 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB8417A-12-Fujitsu.pdf) that lists specifications for multiple related part numbers.

General Description

The Fujitsu MB8417A is a 2048 word by 8-bit static random access memory fabricated with high density, high reliability Complementary MOS silicon· gate technology.

The memory utilizes asynchro· nous circuitry and may be main· tained in any state for an inde· finite period of time.

All input and output pins are TIL-compatible, and a single 5 volt power supply

Overview

FUJITSU MICROELECTRONICS CMOS 16,384·BIT STATIC RANDOM ACCESS MEMORY MB8417A·12.

Key Features

  • Organized as 2048 words by 8-bits.
  • Address Access Time: MB8417A.
  • 12 120ns Max. MB8417A.
  • 15 150ns Max.
  • Low Power Dissipation: IcC (Active) = 60mA Max. ISB (Standby) = 4mA Max. lOR (Data Retention) =2mA Max.
  • Completely Static Operation, no clocks required is used. It is possible to retain data at low power supply voltage. The MB8417A can be optimized for high performance applica.
  • tions such as microcomputer systems where fast access time and ease o.
