MB8418A-15 - CMOS STATIC RANDOM ACCESS MEMORY

Download the MB8418A-15 datasheet PDF. This datasheet also covers the MB8418A-12 variant, as both devices belong to the same cmos static random access memory family and are provided as variant models within a single manufacturer datasheet.

General Description

The Fujitsu MB8418A is a 2048 word by B-bit static random access memory fabricated with high density, high reliability Complementary MOS silicongate technology.

The memory utilizes asynchronous circuitry and may be maintained in any state for an indefinite period of time.

Key Features

  • Organized as 2048 words by 8-bits.
  • Address Access Time: MB8418A-12 120ns Max_ MB8418A-15 150ns Max.
  • Low Power Dissipation: Icc (Active) = 60mA Max. ISB (Standby) = 4mA Max. lOR (Data Retention) = 2mA Min.
  • Completely static operation, no clocks required.
  • Single +5V Power Supply, %10% tolerance retain data at low power supply voltage. The MB8418A can be optimized for high performance.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB8418A-12-Fujitsu.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MB84 Single Phase Bridge Rectifier Micro Commercial Components
MB840 Socket 478 Pentium 4 Industrial Motherboard User Manual ETC
MB84256-10LP CMOS 256K SRAM ETC
MB8441-45PFQ CMOS 64K-Bit Dual Port Static RAM ETC
MB84SD23280E-70PBS 64M (X16) FLASH MEMORY 8M (X16) SRAM AMD

Other Datasheets by Fujitsu Semiconductor Limited

Part Number Description
MB8418A-12 CMOS STATIC RANDOM ACCESS MEMORY
MB8418 CMOS STATIC RANDOM ACCESS MEMORY
MB8418-X CMOS STATIC RANDOM ACCESS MEMORY
MB841000 CMOS 1M LOW POWER SRAM
MB8416 CMOS STATIC RANDOM ACCESS MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

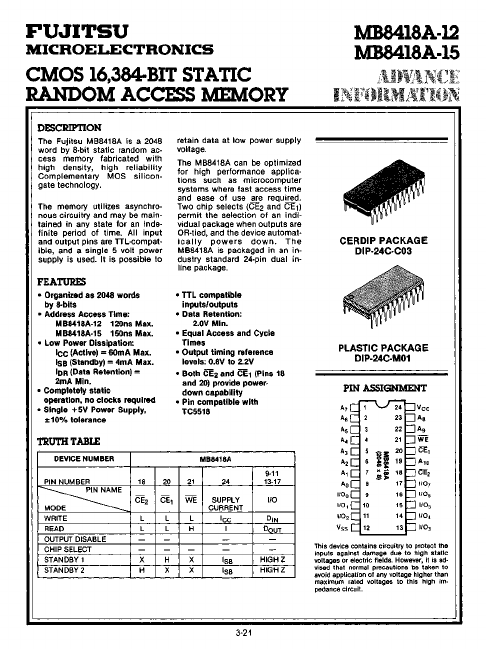

FUJITSU MICROELECTRONICS CMOS 16,384-BIT STATIC RANDOM ACCESS MDAORY MB8418A-12 MB8418A-15 DESCRIPTION The Fujitsu MB8418A is a 2048 word by B-bit static random access memory fabricated with high density, high reliability Complementary MOS silicongate technology. The memory utilizes asynchronous circuitry and may be maintained in any state for an indefinite period of time. All input and output pins are TTL-compatible, and a single 5 volt power supply is used. It is possible to FEATURES • Organized as 2048 words by 8-bits • Address Access Time: MB8418A-12 120ns Max_ MB8418A-15 150ns Max. • Low Power Dissipation: Icc (Active) = 60mA Max. ISB (Standby) = 4mA Max. lOR (Data Retention) = 2mA Min.
