MBM100474-15 - ECL RAM

Fujitsu Semiconductor Limited

Datasheet Details

Part number	MBM100474-15
Manufacturer	Fujitsu Semiconductor Limited
File Size	22.45 KB
Description	ECL RAM

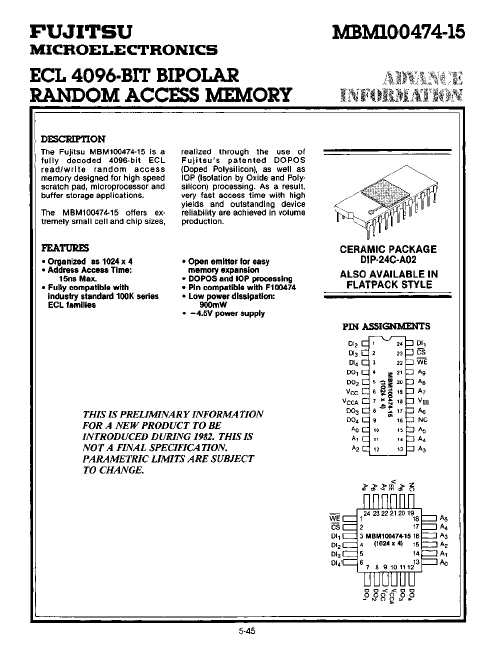

Datasheet	MBM100474-15 Datasheet

General Description

The Fujitsu MBM100474-15 is a fully decoded 4096-bit Eel read/write random access memory designed for high speed scratch pad, microprocessor and buffer storage applications.

The MBM100474-15 offers extremely small cell and chip sizes, realized through the use of Fujitsu's patented DOPOS (Doped Polysilicon), as well as lOP (Isolation by Oxide and Polysilicon) processing.

As a result, very fast access time with high yields and outstanding device reliability are achieved in volume production.

Overview

FUJITSU MICROELECTRONICS ECL 4096·BIT BIPOLAR RANDOM ACCESS MEMORY.

Key Features

Organized as 1024 x 4.
Address Access Time: 15ns Max_.
Fully compatible with industry standard 100K series Eel families.
Open emitter for easy memory expansion.
DOPOS and lOP processing.
Pin compatible with F100474.
low power dissipation: 900mW.
-4_5V power supply THIS IS.
